1.25Gbps SFP CWDM Transceiver, Single Mode, 40km Reach

Product Features
● Supports up to 1.25Gbps bit rates
● Hot-pluggable SFP footprint
● CWDM DFB laser and PIN photo detector, Up to 40km for SMF transmission
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Compatible with RoHS
● Single +3.3V power supply
● Real Time Digital Diagnostic Monitoring
● Operating case temperature:Standard: 0 to +70°C/Industrial: -40 to +85°C

Applications
● 1.25Gbps Optical systems
● Gigabit Ethernet
● 1.063Gbps Fiber Channel
● Other Optical links

Description
The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	–	5	85	%

Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
	Extended		-20		+80	°C
	Industrial		-40		+85	°C
Power Supply Voltage		Vcc	3.135	3.30	3.465	V
Power Supply Current		Icc			300	mA
Data Rate			0.1	1.25		Gbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	λc-6.5	λc	λc+6.5	nm
Spectral Width（-20dB）			Δλ			1	nm
Side-Mode Suppression Ratio			SMSR	30		–	dB
Average Output Power			Pout	-5		0	dBm	1
Extinction Ratio			ER	9.0			dB
Data Input Swing Differential			VIN	180		1200	mV	2
Input Differential Impedance			ZIN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1270		1610	nm
Receiver Sensitivity						-24	dBm	3
Receiver Overload				-1			dBm	3
LOS De-Assert			LOSD			-25	dBm
LOS Assert			LOSA	-38			dBm
LOS Hysteresis				0.5		4	dB
Data Output Swing Differential			Vout	600	800	1000	mV	4
LOS			High	2.0		Vcc	V
			Low			0.8	V

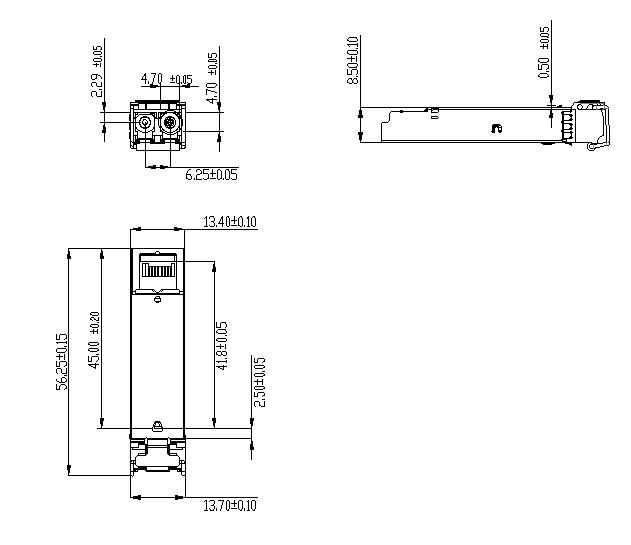

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCS-Cxx12-40D	CWDM,  1.25Gbps,  LC,  40km,    0°C~+70°C,  with DDM
FTCS-Cxx12-40DI	CWDM,  1.25Gbps,  LC,  40km,  -40°C~+85°C,  with DDM
