Features
● 800G 2xSR4 multimode transceiver
● 8-channels of 100G-PAM4 electrical modulation
● Two ports of 4-channel 100G-PAM4 optical modulation
● Supports two straight 400Gb/s or two 1:2 splitter fiber cables for 200Gb/s
● Finned-top OSFP for air-cooled switches
● 850nm VCSEL
● Maximum reach: 100m using OM4 fiber

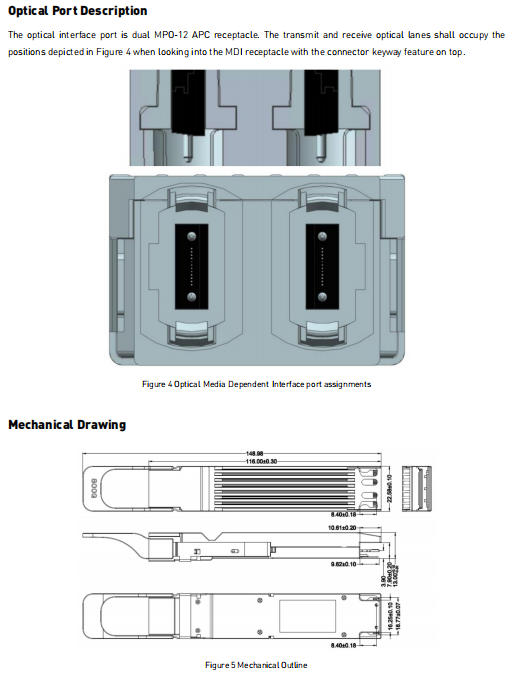

● Two MPO-12/APC optical connectors
● 14 Watts max power
● Single 3.3V power supply
● Class 1 laser safety
● Hot pluggable, RoHS compliant
● CMIS 4.0 compliant
● Case temperature range 0°C to +70°C
Description
FTCO-8H-SR4 is an Eight-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 800Gigabit Ethernet applications.This transceiver is a high performance module for shortrange data communication and interconnect application. Itintegrates eight data lanes in each direction with 8×53.125GBd. The length of OSFP SR8 is up to 70 meters over OM3MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominalwavelength of 850nm.
The transceiver combinations guarantee optimal operation. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品仅展示部分参数（VS），如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
