DC-10Mbps 1×9 BIDI Transceiver Module

Product Description
F-tone Networkes’s FTTR-BxxL2-20xx series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 10Mbps.The module is fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provides the system designer with products to RS232/RS485/RS422 fiber transmission.

Product Features
 FP Laser Diode Transmitter
 Up to 20 Km on 9/125μm SMF
 3.3V or 5Vpower supply

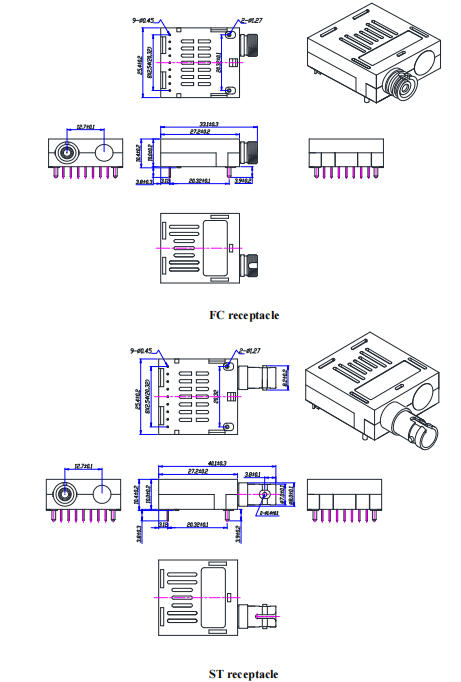

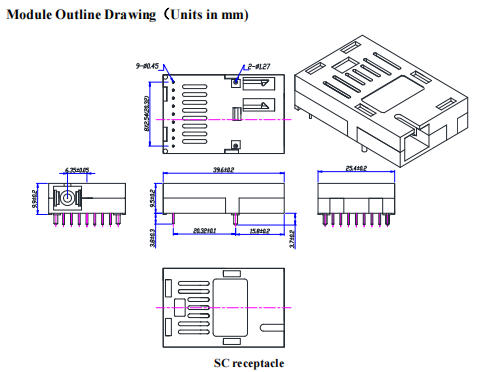

 SC/ST/FC duplex optical interface
 (LV)TTL Input/ Output and LVTTL signal detect
 Class 1 Laser International Safety Standard IEC 825 Compliant
 Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
 RS232/RS485/RS422 receptacle fiber transmission
 Other optic link

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

本产品为1*9光模块，仅展示部分参数（05），如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
