Features
● DC to 10M data rate
● Duplex LC receptacle optical interface compliant
● Single +3.3V power supply
● Hot-pluggable
● Receiver loss of signal output
● Transmitter disable input
● International Class1 laser safety certified
● Operating temperature range:Industrial: -40°C~85°C
● RoHS Compliant
Standard
● Compliant with SFP MSA (INF-8074i)
● Compliant with SFF-8472
Specification
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Storage temperature | TS | -40 | 85 | °C |
| Power Supply Voltage | VCC | 0 | 3.6 | V |
| Relative Humidity | RH | 5 | 95 | % |
| Recommended Operating Conditions | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Operating Case Temperature | TC | -40 | 85 | °C | FTCS-13L2-20DI | |
| Power Supply Voltage | VCC | 3.13 | 3.3 | 3.47 | V | |
| Data Rate | 0 | 10 | Mbps | |||
| Fiber Length 9/125μm core SMF | 20 | km | ||||
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Total Supply Current | ICC | 300 | mA | |||
| Transmitter | ||||||
| Transmitter Input Voltage – High | 2 | Vcc | V | LVTTL | ||
| Transmitter Input Voltage – Low | 0 | 0.8 | V | LVTTL | ||
| TXdisable Input Voltage-High | 2 | Vcc | ||||
| TXdisable Input Voltage-Low | 0 | 0.8 | ||||
| Receiver | ||||||
| Receiver Output Voltage – High | 2.4 | Vcc | V | LVTTL | ||
| Receiver Output Voltage – Low | 0 | 0.4 | V | LVTTL | ||
| LOS Output Voltage – High | VOH | 2.4 | Vcc | V | LVTTL | |
| LOS Output Voltage – Low | VOL | 0 | 0.4 | V | LVTTL | |
| Optical Transmitter Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Average Output Power | POUT | -9 | -0 | dBm | |||
| Center Wavelength | λc | 1260 | 1310 | 1360 | nm | FTCS-13L2-20DI | |
| Spectral Width | ∆λ | 3.5 | nm | ||||
| Extinction Ratio | ER | 9 | dB | ||||
| Optical Receiver Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Center Wavelength | λc | 1260 | 1310 | 1360 | nm | FTCS-13L2-20DI | |
| Receiver Sensitivity | PSEN | -20 | dBm | ||||
| Input Saturation Power (Overload) | PSAT | 0 | dBm | ||||
| LOS De-assert Level | LOSD | -21 | dBm | ||||
| LOS Assert Level | LOSA | -45 | dBm | ||||
| LOS hysteresis | HYS | 0.5 | 6 | dB | |||

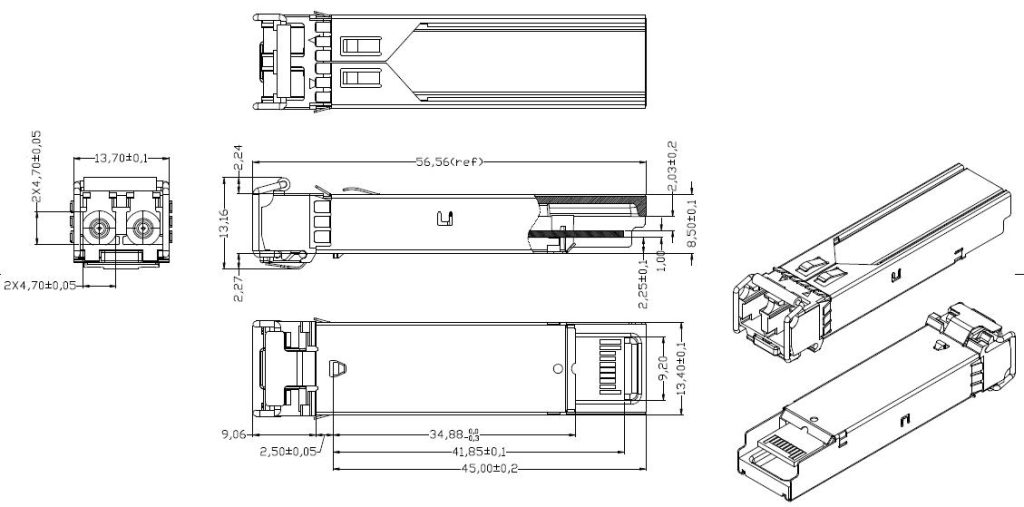

Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
Ordering Information
| Part Number | Specifications | |||||
| Package | Data Rate(bps) | Wavelength(nm) | Temperature(°C) | Reach(km) | DDM | |
| FTCS-13L2-20DI | SFP | DC-10M | 1310 | -40~85 | 20 | Y |
