特点

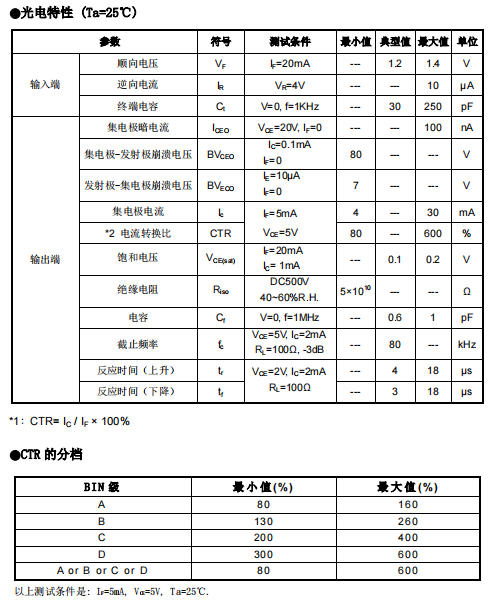

- 电流转换比 CTR：50~600% (在 IF=5mA, VCE=5V 条件下)
- 输入、输出端之间绝缘电压高 (VISO=3750Vrms)

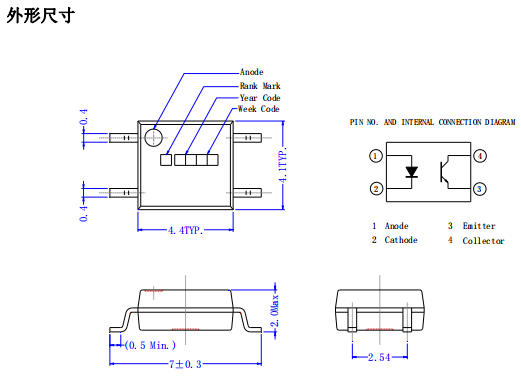

- 采用 4 引脚微型 SOP 封装结构，
- 环保符合 RoHS 要求
- 安规符合 CQC、UL、VDE、CE 要求
说明
- FT-71系列的光耦合隔离器件，它由一个红外二极管和一个 NPN 光敏管组成
- PIN 间距为 2.54mm
应用
- 各类通讯设备.
- 系统装置, 测量仪器.
- 高低电压电路间的电气隔绝和信号传输.
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品仅展示部分参数（71），如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
