56G QSFP+ Active Optical Cables

Features
● Support Infiniband and Fibre Channel application
● Compliant to QSFP+ Electrical MSA SFF-8436
● Multi rate of up to 14.025Gbps
● +3.3V single power supply
● Low power consumption
● Operating case temp Commercial: 0℃ to +70℃
● RoHS compliant

Applications
● InfiniBand FDR at 56Gb
● 16G Fibre Channel at 14Gb per lane
● Super Computer
● Other optical links

Absolute Maximum Ratings

Form Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Supply Voltage	Vcc3	-0.5		+3.6	V
Storage Temperature	Ts	-10		+70	°C
Operating Humidity	TOP	+5		+85	%	1

Note: 1 No condensation

Recommended operating Conditions

Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Operating Case Temperature	Tc	0	–	+70	℃
Power Supply Voltage	Vcc	3.14	3.3	3.47	V
Power Dissipation	Pd	–	–	1.5	W
Bit Rate	BR	1.25	14.025	–	Gbps

Note: 1 Per terminal

Electrical Characteristics

Parameter		Symbol	Min.	Typ.	Max.	Units	Notes
ModSelL	Module Select	VOL	0	–	0.8	V
	Module Unselect	VOH	2.5	–	Vcc	V
Low Power	Mode LPMode	VIL	0	–	0.8	V
	Normal Operation	VIH	2.5	–	Vcc+0.3	V
ResetL	Reset	VIL	0	–	0.8	V
	Normal Operation	VIH	2.5	–	Vcc+0.3	V
ModPrsL	Normal Operation	VOL	0	–	0.4	V
IntL	Interrupt	VOL	0	–	0.4	V
	Normal Operation	VOH	2.4	–	Vcc	V
Electrical transmitter Characteristics
Differential Data Input Swing		Vout	200	–	1600	mV
Input Differential Impedance		ZD	90	100	110	Ω
Electrical Receiver Characteristics
Differential Date Output Swing		Vin,p-p	350	–	800	mVpp
Output Differential Impedance		BER			E-12		1
Input Differential Impedance		ZIN	90	100	110	Ω

Note: 1 PRBS2^31-1@14.025Gbps

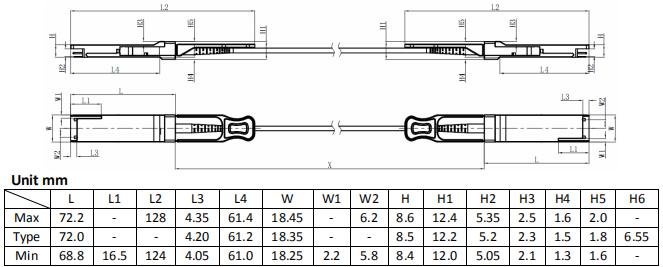

Mechanical

Ordering Information

Part No.	Bit Rate (Gbps)	Laser (nm)	Distance	Fiber Type	Connector	Temp
FT-77-AOC-Q3Q3-xxx	56.1	850	0.5~150m	MMF	N/A	0℃~+70℃

Note: 1 Case Temperature

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为QSFP+系列光模块，仅展示部分参数，如有需要，请联系我们。
