40G QSFP+ SR4 Plastic Pull Tab

Description
The F-tone Networks FTCQ-4X-SR4xx is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 11.3 Gbps up to 300 m using OM3 fiber or 400 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
● 4 channels full-duplex transceiver modules
● Transmission data rate up to 11.3Gbps per channel
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Low power consumption <1.5W
● Hot Pluggable QSFP form factor
● Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
● Single MPO connector receptacle
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● 40G Ethernet and OTU3
● Datacom/Telecom switch & router connections
● Data Aggregation and Backplane Applications
● Proprietary Protocol and Density Applications
● Infiniband transmission at 4ch SDR, DDR and QDR

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	0	70	ºC
Humidity(non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	0		70	ºC
Data Rate Per Lane	fd		10.3	11.3	Gbps
Humidity	Rh	5		85	%
Power Dissipation	Pm			1.5	W

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude	ΔVin	300		1100	mVp-p
Differential output voltage amplitude	ΔVout	500		800	mVp-p
Skew	Sw			300	ps
Bit Error Rate	BER			E-12
Input Logic Level High	VIH	2.0		VCC	V
Input Logic Level Low	VIL	0		0.8	V
Output Logic Level High	VOH	VCC-0.5		VCC	V
Output Logic Level Low	VOL	0		0.4	V

Note：
1.   BER=10^-12; PRBS 2^31-1@10.3125Gbps.
2.   Differential input voltage amplitude is measured between TxnP and TxnN.
3.   Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics
Table 3 – Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	840	850	860	nm	–
RMS spectral width	∆λ	–	–	0.65	nm	–
Average launch power, each lane	Pout	-7.6	–	2.4	dBm	–
Difference in launch power between any two lanes (OMA)				4	dB	–
Extinction Ratio	ER	3	–	–	dB	–
Peak power, each lane				4	dBm	–
transmitter and dispersion penalty (TDP), each lane	TDP			3.5	dB	–
Average launch power of OFF transmitter, each lane				-30	dBm	–
Eye Mask coordinates:   X1, X2, X3, Y1, Y2, Y3	SPECIFICATION VALUES0.23, 0.34, 0.43, 0.27, 0.35, 0.4						Hit Ratio = 5×10-5
Receiver
Centre Wavelength	λc	840	850	860	nm	–
Stressed receiver sensitivity in OMA				-5.4	dBm	1
Maximum Average power at receiver , each lane input, each lane				2.4	dBm	–
Minimum Average power at receiver , each lane		-9.5			dBm
Receiver Reflectance				-12	dB	–
Peak power, each lane				4	dBm	–
LOS Assert		-30			dBm	–
LOS De-Assert – OMA				-7.5	dBm	–
LOS Hysteresis		0.5			dB	–

Note：
1．Measured with conformance test signal at TP3 for BER = 10e-12

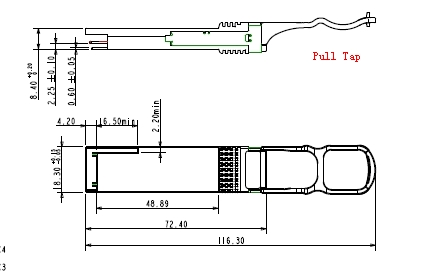

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCQ-4X-SR4	（ERP code 480301002）QSFP+ SR4, 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF,  Plastic Pull Tab, 0 ~ +70℃
FTCQ-4X-SR4I	（ERP code 480301002）QSFP+ SR4, 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF,  Plastic Pull Tab, -40 ~ +85℃

References
1. SFF-8436 QSFP+
2. Ethernet 40GBASE-SR4xx
