Description
The SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps over multimode fiber.The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Product Features

Supports up to 25.78Gbpsbit rates
Hot-pluggable SFP+ footprint
850nm VCSELlaser and PIN photodiode
100m over M5F MMF (50/125 um OM4)
70m over M5E MMF (50/125um OM3)
20m on MMF (50/125um OM2)
Compliant with SFP+MSA and SFF-8472 with duplexLC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:Industrial: -40 to +85°C

Applications

25GE SR/eCPRI
CPRI option 10,7, 8
100GE SR fan out to 4x25GE SR

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	–	5	85	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Tc	-40		+85	°C
Power Supply Voltage	Vcc	3.135	3.30	3.465	V
Power Supply Current	Icc			300	mA
Data Rate			25.78 10.3		Gbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	840	850	860	nm
Spectral Width（RMS）			Δλ			0.6	nm
Side-Mode Suppression Ratio			SMSR	–	–	–	dB
Average Output Power @25.78Gbps and @10.3Gbps			P_out	-8.4		2.4	dBm	1
Extinction Ratio			ER	2.0			dB
Data Input Swing Differential			V_IN	180		950	mV	2
Input Differential Impedance			Z_IN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	840	850	860	nm
Receiver Sensitivity@25.78Gbps						-10.3	dBm	3
Receiver Sensitivity@10.3Gbps						-12.5	dBm	4
Receiver Overload				2.4			dBm	3
LOS De-Assert			LOS_D			-13	dBm
LOS Assert			LOS_A	-30			dBm
LOS Hysteresis				0.5		4	dB
Data Output Swing Differential			V_out	500		900	mV	5
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Notes:

1. The optical power is launched into MMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 2³¹-1 test pattern @25.78Gbps, BER ≤5E-5..

4. Measured with a PRBS 2³¹-1 test pattern @10.3Gbps, BER ≤1E-12.

5. Internally AC-coupled.

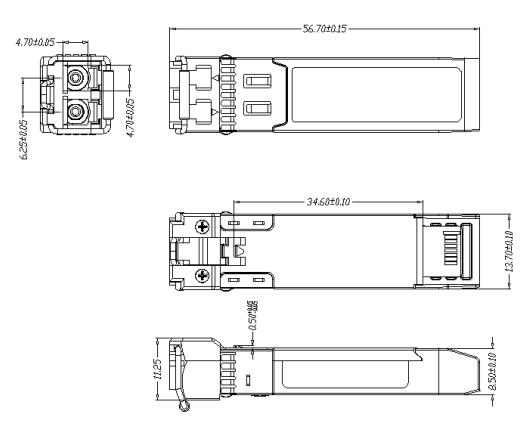

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCS-8525G-02DI	850nm, 25.78Gbps, LC, OM3-MMF 70m/OM4-MMF 100m, With DDM, -40°C~+85°C
