Description
F-tone Networks’s FTQ5-2H-SR4-Q5-Oxxx 200GE QSFP56 Optical Transceiver modules are designed for use in 200 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber. They are compliant with the QSFP MSA and with IEEE 802.3cd 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.
Features
● Hot-pluggable QSFP56 form factor
● Built-in 200G PAM4 DSP
● Supports 212.5Gb/s aggregate bit rates
● Supports 103.1Gb/s aggregate bit rates if requiredNote1
● Low power dissipation < 5W
● RoHS-6 compliant (lead-free)
● Single 3.3V power supply
● Maximum link length of 70m on OM3 MMF
and 100m on OM4 & OM5 MMF
● Uncooled 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● 200GAUI-4 electrical interface
● I2C management interface
● CMIS V4.0 compliant
● Built-in digital diagnostic functionality
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3cd 200GBASE-SR4 Ethernet (PAM4)
● IEEE 802.3bm 100GBASE-SR4 Ethernet (NRZ) Note1
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.3 | 3.6 | V |
| Input Voltage | Vin | -0.3 | Vcc+0.3 | V |
| Storage Temperature | Ts | -20 | 85 | ºC |
| Case Operating Temperature | Tc | 0 | 70 | ºC |
| Humidity (non-condensing) | Rh | 5 | 95 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Operating Case Temperature | Tc | 0 | 70 | ºC | |
| Baud Rate per Lane (PAM4) | fd | 26.5625 | GBaud/s | ||
| Humidity | Rh | 5 | 85 | % | |
| Power Dissipation | Pm | 4.1 | 4.5 | W | |
| Fiber Bend Radius | Rb | 3 | cm |
Electrical Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
| Differential Input Impedance | Zin | 90 | 100 | 110 | ohm |
| Differential Output Impedance | Zout | 90 | 100 | 110 | ohm |
| Differential Input Voltage AmplitudeNote2 | ΔVin | 300 | 900 | mVppd | |
| Differential Output Voltage Amplitude | ΔVout | 300 | 900 | mVppd | |
| Bit Error Rate Note3 | BER | 2.4E-4 | |||
| Input Logic Level High | VIH | 2.0 | Vcc | V | |
| Input Logic Level Low | VIL | 0 | 0.8 | V | |
| Output Logic Level High | VOH | Vcc-0.5 | Vcc | V | |
| Output Logic Level Low | VOL | 0 | 0.4 | V |
Note:
Note2. Suggested < 700mVpp input differential signal for better BER performance.
Note3. Compliant with IEEE802.3cd 200GBASE-SR4 specification.
Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Transmitter | ||||||
| Center Wavelength | λc | 840 | 850 | 860 | nm | |
| RMS Spectral Width | ∆λ | 0.6 | nm | |||
| Average Launch Power (each lane) | Pout | -6 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (each lane) | OMAout | -4 | 3 | dBm | ||
| Launch power in OMAouter minus TDECQ | Ptdecq | -5.9 | dBm | |||
| Transmitter and dispersion eye closure (each lane) | TDECQ | 4.9 | dB | |||
| Average launch power of off transmitter(each lane) | Poff | -30 | dBm | |||
| Outer Extinction Ratio | ER | 3 | dB | |||
| Optical Return Loss Tolerance | ORLT | 12 | dB | |||
| Receiver | ||||||
| Center Wavelength | λc | 840 | 850 | 860 | nm | |
| Damage threshold | Rdam | 5 | dBm | |||
| Average Receive Power (each lane)Input (each lane) | Pin | -7.9 | 4 | dBm | ||
| Receiver Power (OMAouter) (each lane) | OMAout | 3 | dBm | |||
| Receiver reflectance | Pref | -12 | dB | |||
| Stressed Receiver Sensitivity (OMAouter) (each lane) | Sens | -3 | dBm | |||
| Receiver Sensitivity (OMAouter) (each lane) Note4 | Sen | -7 | dB | |||
Note:
Note4. Measured with conformance test signal at TP3 for the BER specified in section 138.1.1 of IEEE 802.3cd.

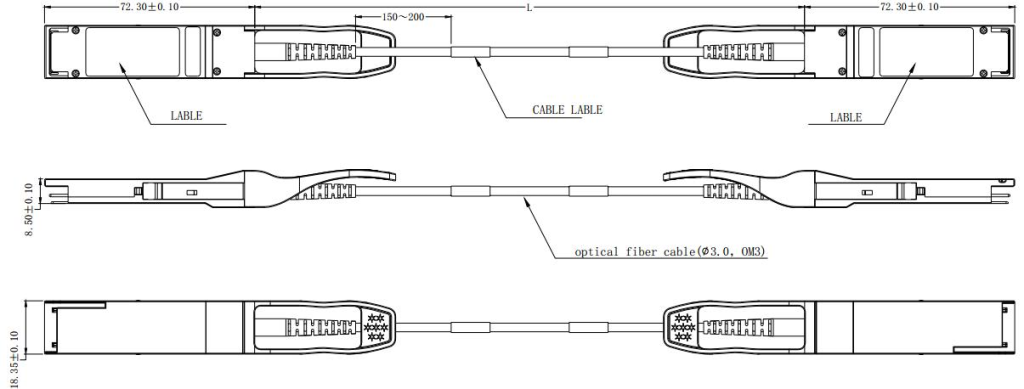

Mechanical Dimensions
Ordering Information
| Part Number | Product Description |
| FTQ5-2H-SR4-Q5-Oxxx | QSFP56, 200GBASE-SR4 Active Optical Cable, 70m on OM3 (MMF)and 100m on OM4/OM5 MMF, DSP version,0ºC ~ +70ºC |
| FTQ5-2H-SR4-Q5-OxxxI | QSFP56, 200GBASE-SR4 Active Optical Cable, 70m on OM3 (MMF)and 100m on OM4/OM5 MMF, DSP version,-40ºC ~ +85ºC |
