Description
F-tone Networks’s FTQ5-2H-ER4xx 200GE QSFP56 Optical Transceiver modules are designed for using in 200-Gigabit Ethernet 40km links over SMF single-mode fiber. They are compliant with the QSFP MSA and with IEEE 802.3cn 200GBASE-ER4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0.

Features
● Hot-pluggable QSFP56 form factor
● Built-in 200G PAM4 DSP
● Supports 212.5Gb/s aggregate bit rates
● Maximum power dissipation <7W
● RoHS compliant (lead-free)
● Single 3.3V power supply
● Maximum link length of 40km on SMF
● Cooled 4 channels EA-DFB TOSA
● 4 channels APD ROSA
● 200G AUI-4 electrical interface
● Compliant with CMIS V4.0
● I2C management interface
● Built-in digital diagnostic functionality
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃

Applications
● IEEE 802.3cn 200GBASE-ER4 Ethernet

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	V_cc	-0.3	3.6	V
Input Voltage	V_in	-0.3	V_cc+0.3	V
Storage Temperature	T_s	-20	85	ºC
Case Operating Temperature	T_c	0	70	ºC
Humidity (non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	V_cc	3.13	3.3	3.47	V
Operating Case Temperature	T_c	0		70	ºC
Baud Rate per Lane (PAM4)	fd		26.5625		GBaud/s
Humidity	Rh	5		85	%
Power Dissipation	P_m		6.5	7	W

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential Input Impedance	Z_in	90	100	110	ohm
Differential Output Impedance	Z_out	90	100	110	ohm
Differential Input Voltage Amplitude	ΔV_in	300		900	mVpp
Differential Output Voltage Amplitude	ΔV_out	300		900	mVpp
Bit Error Rate	BER			2.4E-4
Input Logic Level High	V_IH	2.0		V_cc	V
Input Logic Level Low	V_IL	0		0.8	V
Output Logic Level High	V_OH	V_cc-0.5		V_cc	V
Output Logic Level Low	V_OL	0		0.4	V

Optical Characteristics

Parameter	Symbol		Min	Typical	Max	Unit
Transmitter
Center Wavelength		L1	1294.53	1295.56	1296.59	nm
Center Wavelength		L2	1299.02	1300.05	1301.09	nm
Center Wavelength		L3	1303.54	1304.58	1305.63	nm
Center Wavelength		L4	1308.09	1309.14	1310.19	nm
SMSR		SMSR	30			nm
Average Launch Power (each lane)		P_out	0.4		6.6	dBm
Average Launch Power (total)		P_t_atal			12.6	dBm
Outer Optical Modulation Amplitude (each lane)		OMA_out	3.4		7.4	dBm
Launch power in OMA_outer minus TDECQ		P_tdecq	2			dBm
Transmitter and dispersion eye closure (each lane)		TDECQ			3.2	dB
Average launch power of off transmitter(each lane)		P_off			-30	dBm
Outer Extinction Ratio		ER	6			dB
Optical Return Loss Tolerance		ORLT			15	dB
Receiver
Center Wavelength		L1	1294.53	1295.56	1296.59	nm
Center Wavelength		L2	1299.02	1300.05	1301.09	nm
Center Wavelength		L3	1303.54	1304.58	1305.63	nm
Center Wavelength		L4	1308.09	1309.14	1310.19	nm
Damage threshold		Rdam	-2.4			dBm
Average Receive Power (each lane)Input (each lane)		Pin	-17.6		-3.4	dBm
Receiver Power (OMA_outer) (each lane)		OMA_out			-2.6	dBm
Receiver reflectance		Pref			-26	dB
Stressed Receiver Sensitivity (OMA_outer) (each lane)		Sens			-13.3	dBm
Receiver Sensitivity (OMA_outer) (each lane)		Sen			-16.5	dBm

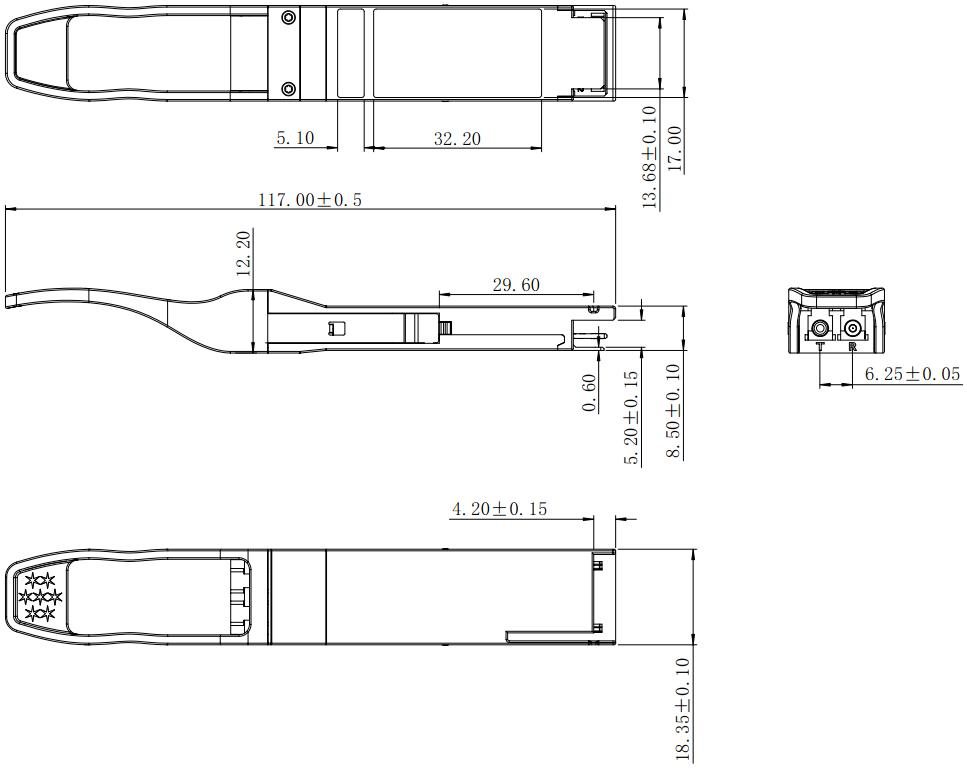

Mechanical Dimensions

Ordering Information

Part Number	Product Description
FTQ5-2H-ER4	QSFP56, 200GBASE-ER4, 40km over SMF,0~+70℃
FTQ5-2H-ER4I	QSFP56, 200GBASE-ER4, 40km over SMF,-40~+85℃
