10MHz ~12GHz S-Mini Analog Optical Receiver with Pigtail DS

Features
● Supper-Mini size：31.3mm17mm10mm(LWH)
● Low power consumption
● Wide operating frequency from 10MHz to 12GHz
● Flat frequency response
● Single +5V Power supply
● Have optical power monitoring function
● Excellent EMI/EMC design
● Integrated broadband amplifier (optional)

Applications
● WiMAX / 4G / 5G
● Satellite communications
● Mobile backhaul
● GPS signal transport
● All-Digital QAM network
● Data and video distribution
● Distributed antenna system

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min.	Max.	Unit
Operating Case Temperature	Topr		-20	+70	°C
Storage Temperature	Tstg		-40	+85	°C
DC Operating Voltage	Vd	+5V Pin	+4.7	+5.5	V
Saturation Input Optical Power	Ps	CW	—	10	mW
Relative Humidity	Hr		—	95	%
Pressure	Pr		86	106	kPa
ESD		Human body model		Class 1A

Note ：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure, shorter lifetime, and will invalidate the device warranty.

Typical Specification

Parameter	Test Condition		MIN.	TYP.	MAX.	Unit
Frequency Range	RSC		0.01 ~ 3			GHz
	RCC		0.01 ~ 6
	RXC		0.01 ~ 12
Optical Wavelength			800~1650			nm
Gain (1)	RSC	Tx without amplifierRx with amplifier	-11	-3	—	dB
		Tx without amplifierRx without amplifier	-28	-24	—
	RCC	Tx without amplifierRx with amplifier	-11	-3	—
		Tx without amplifierRx without amplifier	-30	-26	—
	RXC	Tx without amplifierRx without amplifier	-30	-26	—
Ripple of Passband (1)(2)	RSC	100MHz ~ 3GHz	—	±1.2	±2	dB
	RCC	100MHz ~ 6GHz	—	±1.5	±2.2
	RXC	100MHz ~ 12GHz	—	±2.0	±2.5
Input Optical Power	+25℃		—	—	10	dBm
Back Reflection			—	35	—	dB
PD Responsivity	1310nm		0.7	0.8	—	mA/mW
	1550nm		0.7	0.85	—
RF Return loss (50 Ω)	RSC	100MHz ~ 3GHz	—	-12	-8	dB
	RCC	100MHz ~ 6GHz	—	-10	-7
	RXC	100MHz ~ 12GHz	—	-10	-5
Operating Current	with amplifier, RSC/RCC		—	90	120	mA
	without amplifier, RSC/RCC/RXC		—	7	10
Operating Voltage	+5V pin		+4.8	+5	+5.2	VDC

Note: (1) RSC and RCC are test with F-tone Networks FT-79 series S-Mini optical Tx (see the below picture), RXC is test with F-tone Networks FT-79 series optical Tx and the fiber is 1-meter SMF-28 fiber. (2) The ripple contains Tx and Rx.

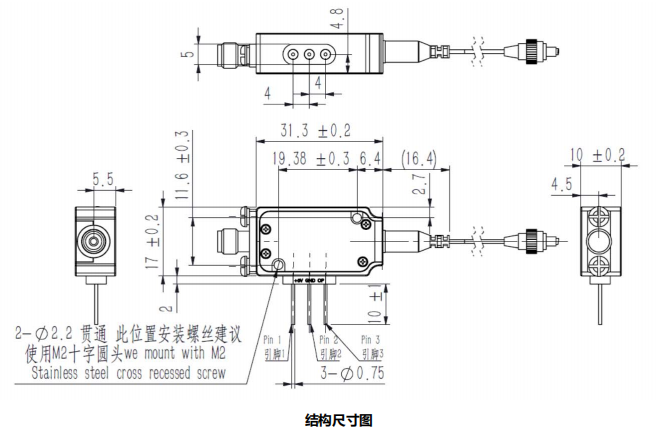

Mechanical (unit: mm)

Ordering Information
Optical Receiver

FT-79-OM	–	RxC	xxx	N	x	–	O	S	1x
FT-79-OM：Optical Module		Frequency(1)：RSC:10M~3GHz RCC:10M~6GHz RXC:10M~12GHz	Wavelength：000：800nm~1650nm		Optical Connector and Fiber (2)：F:FC/APC SML:LC/APC SM			Operating Temperature (3) S: -20 to 70℃	Amplifier (4):10:without11:with

Note:(1) The lower start frequency such as 9kHz or DC is available upon request;(2) Other types of optical connector and fiber is available upon request; (3) Other temperature range is available upon request;(4) Amplifier only supports RSC and RCC frequency band for the time being.
