10G双工LC, 多模850nm VCSEL-LD, PIN 单收,300m光模块

Features
● Support multi-protocol from 8.5Gb/s to 11.3Gb/s
● 850nm VCSEL laser transmitter
● Duplex LC connector
● Up to300m links on MMFOM3
● Single +3.3V Power Supply
● Power consumption<1W
● Compliant with SFF-8431 SFF-8432 and IEE802.3ae
● Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/0°C to 70°C Version available
● RoHS compliant(lead-free)

Applications

● 10GBASE-SR/SW Ethernet
● 10G Fiber channel
● SDH/SONET Application

Description
F-tone NetworksFTUS-851X-02DIxx transceivers are customized transceivers designed for use in 10-Gigabit multi-rate links. They are compliant with SFF-8431, SFF-8432 and 10GBASE LRM; support 4x, 8x and 10x Fibre Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. F-tone NetworksFTUS-851X-02DIxx transceivers are RoHS compliant per Directive 2011/65/EU. The high performance850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links on MMF.

Recommended Circuit

Recommended Host Board Power Supply Circuit


 Recommended High-speed Interface Circuit

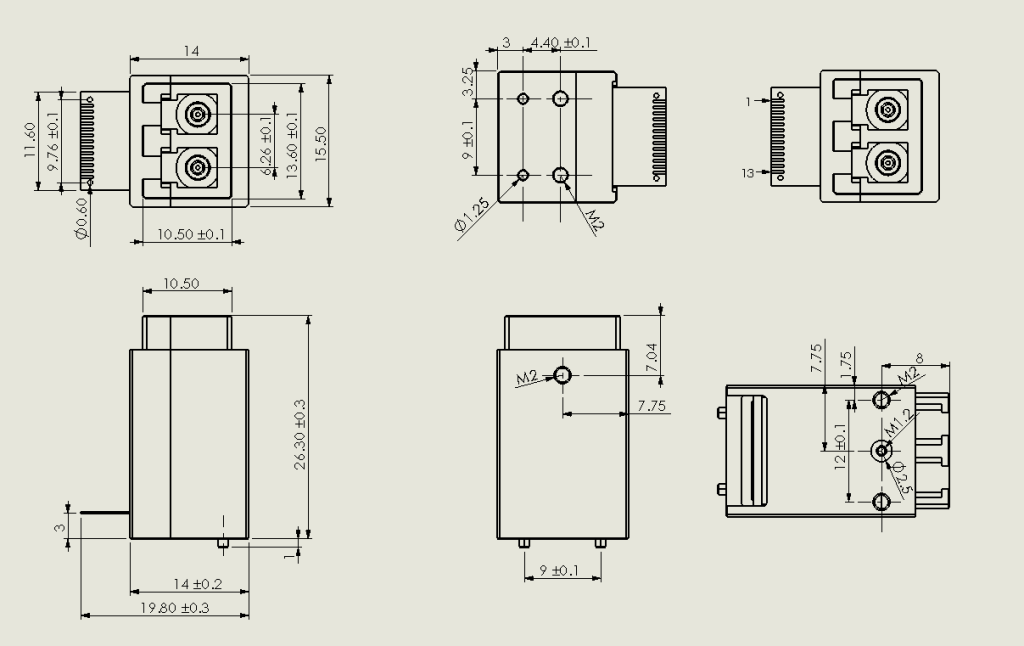

Mechanical Dimensions

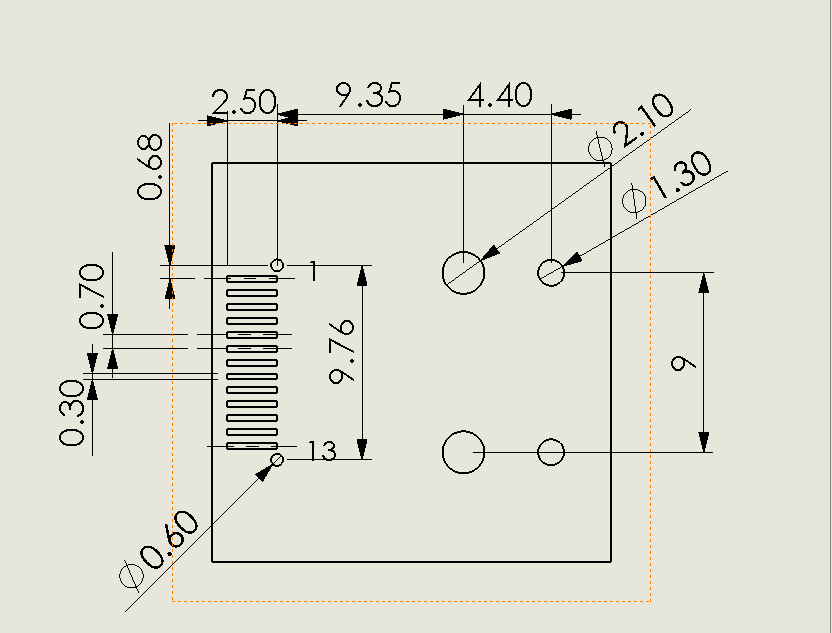

                                               PCB Layout

北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
