Product Features

Supports up to 1.25Gbpsbit rates
Hot-pluggable SFP footprint
1310nm FPlaser and PIN photo detector, Up to 20kmfor SMF transmission
Compliant with SFP MSA and SFF-8472 with duplexLC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
≤500VAC
Operating case temperature:Standard: 0 to +70°C/Industrial: -40 to +85°C

Applications

25Gbps Optical systems
Gigabit Ethernet
063GbpsFiber Channel
Other Optical links

Description

The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	–	5	85	%

Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
	Extended		-20		+80	°C
	Industrial		-40		+85	°C
Power Supply Voltage		Vcc	3.135	3.30	3.465	V
Power Supply Current		Icc			300	mA
Data Rate			0.1	1.25		Gbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1260	1310	1360	nm
Spectral Width（RMS）			Δλ			3	nm
Side-Mode Suppression Ratio			SMSR	–	–	–	dB
Average Output Power			P_out	-9		0	dBm	1
Extinction Ratio			ER	9.0			dB
Data Input Swing Differential			V_IN	180		1200	mV	2
Input Differential Impedance			Z_IN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1260		1610	nm
Receiver Sensitivity						-23	dBm	3
Receiver Overload				-1			dBm	3
LOS De-Assert			LOS_D			-24	dBm
LOS Assert			LOS_A	-38			dBm
LOS Hysteresis				0.5		4	dB
Data Output Swing Differential			V_out	600	800	1000	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 2⁷-1 test pattern @1250Mbps, BER ≤1×10^-12.

4. Internally AC-coupled.

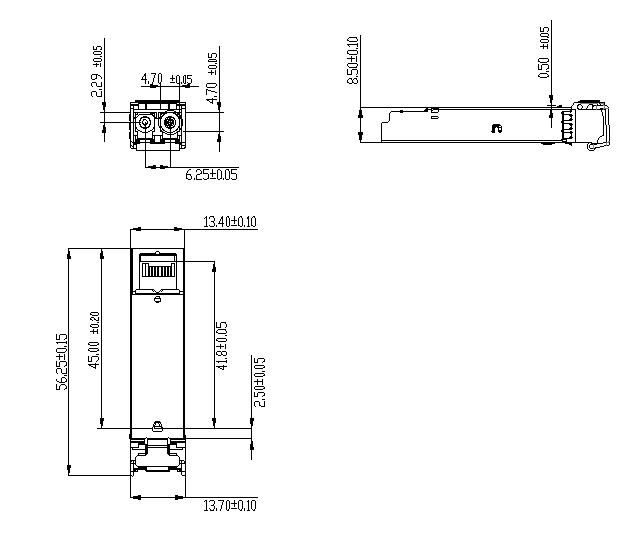

Mechanical Specifications (Unit: mm)

Ordering information

Part Number	Product Description
FTCS-1312-20D	1310nm, 1.25Gbps, LC, 20km, 0°C~+70°C, with DDM
FTCS-1312-20DI	1310nm, 1.25Gbps, LC, 20km, -40°C~+85°C, with DDM

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品仅展示部分参数（WN），如有需要，请您联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.resentative.
