特点
Features
● 低暗电流、高响应度
● Low dake current、Fast pulse reponse
● 高可靠性、高线性
● High reliability、High Linearity
● 高性能指标
● Good identity for interace and receotacle
应用
Applications
● 应用于各种模拟与数字光传输系统
● Apply to all kinds of digital and analog fiber reansmitting system
● CATV传输系统
● Cable TV systems

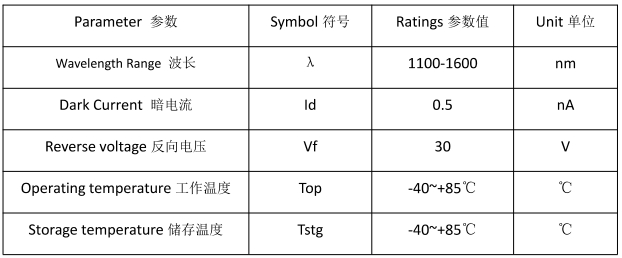

Absoiute Maximum Ratings(T=25℃)极限额定值

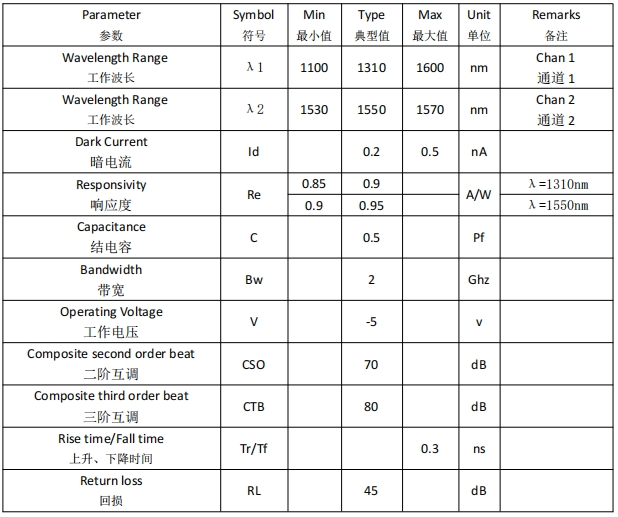

Optical and Electrical Characteristics (T=25℃)光电参数
Package Dimensions 封装尺寸
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-45系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
光学性能测试
测试光纤收发模块的眼图情况、接收灵敏度、消光比、波长、发光、光接收、电流和电压，以确保信号质量、传输的稳定性和可靠性。
Traffic Testing
测试误码率和丢包率，使其符合相应标准，确保收发器的性能。
光学性能测试
测试光纤收发模块的眼图情况、接收灵敏度、消光比、波长、发光、光接收、电流和电压，以确保信号质量、传输的稳定性和可靠性。
端面测试
检查光纤收发模块的端面并保持清洁，以实现更稳定的数据传输、更好的性能和耐用性。
