Features
● Low Insertion Loss
● Wide Wavelength Range
● Low Crosstalk
● High Stability, High Reliability
● Latching and Non-latching
● Epoxy-free on Optical Path
Applications
● Configurable OADM
● Metropolitan Area Network
● System Monitoring
● R&D in Laboratory
D2×2 SM Performance
| Parameters | FT-13- D 2×2-S | |
| Wavelength Range | nm | 1260～1650 |
| Operating | nm | 1310/1550 |
| Insertion Loss | dB | Typ:1.0 Max:1.5 |
| Return Loss | dB | ≥50 |
| Crosstalk | dB | ≥55 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.3 |
| Repeatability | dB | ≤±0.02 |
| Power supply | v | 3.0 or 5.0 |
| Lifetime | time | ≥107 |
| Switch Time | ms | ≤8 |
| Transmission Power | mw | ≤500 |
| Operating | ℃ | -5～+70 |
| Storage Temperature | ℃ | -40～+85 |
| Relative Humidity | % | 5~95 |
| Weight | g | 16 |
| Dimension | mm | (L)28.5×(W)12.6×(H)8.7((±0.2mm) customization is available. |
Electric
| Specifications | Voltage | Current | Resistance | |||
| 5V Latching | 4.5~5.5 | 36~44mA | 125Ω | |||
| 5V Non-latching | 4.5~5.5 | 26~32mA | 175Ω | |||
| 3V Latching | 2.7~3.3 | 54~66mA | 50Ω | |||
| 3V Non-latching | 2.7~3.3 | 39~47mA | 70Ω | |||

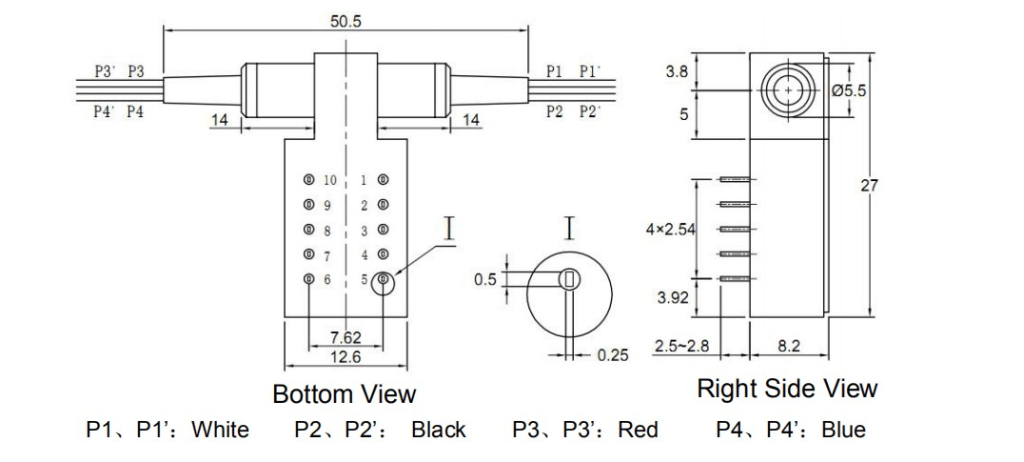

D2x2 SM Dimension
Pins
| Control Model | Optical Path | Electric Drive | Status Sensor | ||||||
| D2×2 | Light Pin | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Latching | P1-P2， P3-P4； P1’-P2’,P3’-P4’ | — | — | GND | V+ | Close | Open | Open | Close |
| P1-P4， P3-P2； P1’-P4’,P3’-P2’ | V+ | GND | — | — | Open | Close | Close | Open | |
| Non-latching | P1-P2， P3-P4； P1’-P2’,P3’-P4’ | — | — | — | — | Close | Open | Open | Close |
| P1-P4， P3-P2； P1’-P4’,P3’-P2’ | V+ | — | — | GND | Open | Close | Close | Open | |
D2×2 MM Performance
| Parameters | FT -13-D2×2-M | ||
| Wavelength Range | nm | 850±40/ 1300±40 | 1470～1650 |
| Testing Wavelength | nm | 850/1300 | 1550 |
| Insertion Loss | dB | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
| Return Loss | dB | ≥30 | |
| Crosstalk | dB | ≥35 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mw | ≤500 | |
| Operation Temperature | ℃ | -5～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Relative Humidity | % | 5~95 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.6×(H)8.2(±0.2mm) customization is available. | |
Electric
| Specifications | Voltage | Current | Resistance | |||
| 5V Latching | 4.5~5.5 | 36~44mA | 125Ω | |||
| 5V Non-latching | 4.5~5.5 | 26~32mA | 175Ω | |||
| 3V Latching | 2.7~3.3 | 54~66mA | 50Ω | |||
| 3V Non-latching | 2.7~3.3 | 39~47mA | 70Ω | |||

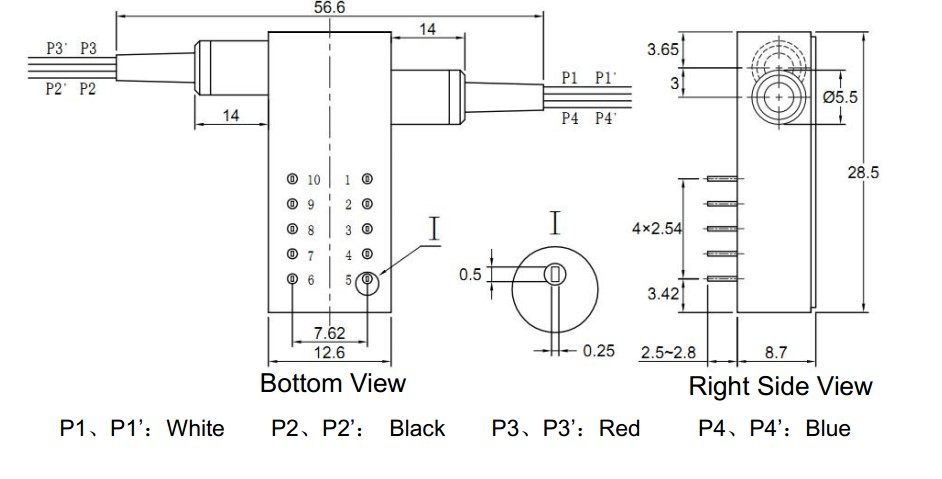

D2x2 MM Dimension
Pins
| Control Model | Optical Path | Electric Drive | Status Sensor | ||||||
| D2×2 | Light Pin | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Latching | P1-P2， P3-P4； P1’-P2’,P3’-P4 | — | — | GND | V+ | Close | Open | Open | Close |
| P1-P4， P3-P2； P1’-P4’,P3’-P2’ | V+ | GND | — | — | Open | Close | Close | Open | |
| Non-latching | P1-P2， P3-P4； P1’-P2’,P3’-P4’ | — | — | — | — | Close | Open | Open | Close |
| P1-P4， P3-P2； P1’-P4’,P3’-P2’ | V+ | — | — | GND | Open | Close | Close | Open | |
Ordering Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | FiberDiameter | Fiber Length | Connector |
| S=SM M=MM | 85=850nm 13=1310nm 14=1490nm 15=1550nm 62=1625nm 65=1650nm 13/15=1310/1550 nm X=Others | 3=3V 5=5V | L=Latching N=Non-Latching | 5=50/125 6=62.5/125 9=9/125 X=Others | 25=250um 90=900um 20=2.0mm 30=3.0mm X=Others | 1=1m 2=1.5m X=Others | 0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-13系列光开关，仅展示部分参数，如有需要，请联系我们。
