Description
The F-tone Networks 100GBASE-ER4 Lite & OTU4 40km QSFP28 optical receiver (FTQ2-HG-ER4Rxx) is designed for use in 100-Gigabit Ethernet and OTN links for Deep Packet Inspection (DPI) applications up to 30km without FEC or 40km with FEC on Single Mode Fiber (SMF). It is compliant with the QSFP28 MSA, 4WDM-40 MSA, IEEE 802.3ba 100GBASE-ER4 and IEEE 802.3bm CAUI-4, and OTU4 standards. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA. It de-multiplexes a 111.8Gb/s optical input into 4 channels of LAN-WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm as members of the LAN-WDM wavelength grid defined in IEEE 802.3ba.
Features
- Hot-pluggable QSFP28form factor
- Receiver only optical module
- Supports 111.8Gb/s aggregate bit rate
- 4channels APDROSA without TOSA
- Internal CDR circuits on receiver channels
- 5W maximum power dissipation
- Maximum link length of 30km on SMFwithout FEC
- Maximum link length of 40km on SMFwith FEC
- Duplex LCreceptacle
- Single 3.3V power supply
- RoHS-6 compliant(lead free)
- Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
- 100GBASE-ER4 Lite 100GEthernet
- 100GE 4WDM-40 applications
- OTN OTU4 applications
- DPI applications
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.3 | 3.6 | V |
| Input Voltage | Vin | -0.3 | Vcc+0.3 | V |
| Storage Temperature | Ts | -20 | 85 | ºC |
| Case Operating Temperature | Tc | 0 | 70 | ºC |
| Humidity (non-condensing) | Rh | 5 | 85 | % |
| Damage Threshold (each lane) | THd | 5.5 | dBm |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Operating Case Temperature | Tc | 0 | 70 | ºC | |
| Data Rate Per Lane | fd | 25.78125 | 27.95 | Gb/s | |
| Humidity | Rh | 5 | 85 | % | |
| Power Dissipation | Pm | 2.5 | W | ||
| Link Distance with G.652 | D | 0.002 | 40 | km |
Electrical Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
| Supply Current | Icc | 1.27 | A | ||
| Single-ended Output Voltage | -0.3 | 4.0 | V | ||
| AC Common Mode Output | 7.5 | mV | |||
| Differential Output Voltage Swing | Vout | 300 | 850 | mVp-p | |
| Differential Output Impedance | Zout | 90 | 100 | 110 | Ohm |
Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit |
| Lane Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | |
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | |
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | |
| Damage Threshold1 (each lane) | THd | -6 | dBm | ||
| Average Receive Power (each lane) | -20.5 | -7 | dBm | ||
| Receive Power (OMA) (each lane) | -7 | dBm | |||
| Receiver Sensitivity (OMA) (each lane)(BER = 5×10-5) @100GE | SEN1 | -18.5 | dBm | ||
| Receiver Sensitivity (OMA) (each lane)(BER = 5×10-12) @100GE | SEN2 | -15 | dBm | ||
| Receiver Sensitivity (OMA) (each lane)(BER = 5×10-5) @OTU4 | SEN4 | -18 | dBm | ||
| Receiver Sensitivity (OMA) (each lane)(BER = 5×10-12) @OTU4 | SEN5 | -14 | dBm | ||
| Stressed Receiver Sensitivity (OMA)2(each lane) (BER= 5×10-5) | SEN3 | -16 | dBm | ||
| Difference in Receive Power between any Two Lanes (OMA) | Prx,diff | 3.6 | dB | ||
| LOS Assert | -26 | dBm | |||
| LOS De-Assert – OMA | -24 | dBm | |||
| LOS Hysteresis | 0.5 | dB | |||
| Receiver Electrical 3 dB upper Cutoff Frequency (each Lane) | Fc | 31 | GHz | ||
| Conditions of Stress Receiver Sensitivity Test3 | |||||
| Vertical Eye Closure Penalty3 | VECP | 2.5 | dB | ||
| Stressed Eye J2 Jitter | J2 | 0.33 | UI | ||
| Stressed Eye J4 Jitter | J4 | 0.48 | UI | ||
Note：
- The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.
- Measured with conformance test signal at receiver input for BER=5×10-5@25.78125Gb/
- Vertical eye closure penalty and stressed eye jitter are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.

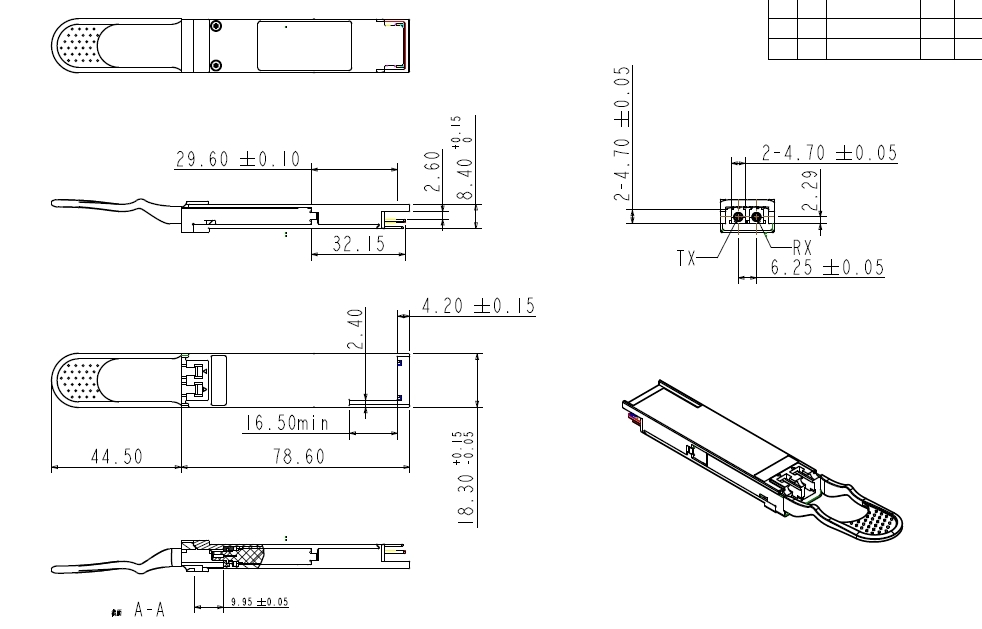

Mechanical Dimensions
Ordering Information
| Product Description | Part Number |
| QSFP28 ER4 Lite Receiver, 111.8Gb/s, 1310nm, 40km with FEC, SMF, LC,0ºC ~ +70ºC | FTQ2-HG-ER4R |
| QSFP28 ER4 Lite Receiver, 111.8Gb/s, 1310nm, 40km with FEC, SMF, LC,-40ºC ~ +85ºC | FTQ2-HG-ER4RI |
北亿纤通 | F-tone Networks
企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为QSFP28系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.eedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
