CFP Transceiver,100G,LR4,10km

Description
The F-tone Networks 100GBASE-LR4 CFP module is the CFP optical transceiver which is a hot pluggable form factor designed for high speed optical networking application. The module is designed for 100Gigabit Ethernet application and provides 100GBASE-LR4 compliant optical interface, CAUI electrical interface and MDIO module managementinterface. The module converts 10-lane 10.3Gb/s electrical data streams to 4-lane LAN-WDM25.78Gb/s optical output signal and4-laneLAN-WDM25.78Gb/s optical inputsignal  to  10-lane10.3Gb/s electrical data streams. This 10-lane 10.3Gb/s electrical signal is fully compliant with802.3ba CAUI specification and allows FR4 host PCB trace up to 25cm. The high performance Cooled  LAN-WDM EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

Features
● Operating optical data rate up to 112Gbps
● Transmission distance up to 10km
● CFP MSA compliant
● Compliant to 100GbE IEEE 802.3ba specification for 100GBASE-LR4 links
● OTU4 compatible
● 1310 nm window cooled EA-DFB LD and PIN ROSA
● 10 parallel electrical serial interface and AC coupling of CML signals
● Hot pluggable electrical interface
● Low power dissipation<9W
● Single 3.3V power supply
● RoHS 6 compliant(lead free)
● Case operating temperature
      Commercial: 0 ~ +70℃
      Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3ba 100GBASE-LR4
● OTN-OTU4
● Switch to switch interface or Switch to router interface

Absolute Maximum Ratings

Parameter	Symbol	Unit	Min	Max
Storage Temperature Range	Ts	°C	-40	+85
Relative Humidity	RH	%	5	85
Power Supply Voltage	Vcc	V	-0.5	+ 3.6
Operating Case Temperature Range	Tc	°C	-5	75
Receiver Damage Threshold Per Lane	Pdag	dBm	+5.5

Recommended Operating Conditions

Parameter	Symbol	Unit	Min	Typ	Max
Operating Case Temperature Range	Tc	oC	0		70
Power Supply Voltage	Vcc	V	3.2	3.3	3.4
Data rate		Gb/s		103.125	112

Products Characteristics(tested under recommended operating conditions)

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Voltage Supply Electrical Characteristics
Supply Current Tx Section / Rx Section		a	–	–	3	1
Power Supply Noise	Vrip				2%	DC-1MHz
					3%	1-10MHz
Dissipation Class2	Pw	W			9
Low Power Dissipation	Plow	W			2
Inrush Current n 2	I-inrush mA/usec				50
Turn-off Current Class2	I-turnoff mA/usec		-50
Different Signal Electrical Characteristics
Single Ended Data Input Swing		mV	55 –		525
Single Ended Data Output Swing		mV	180 –		385
Differential Signal Resistance	Output	Ω	80		120
Differential Signal Resistance	Input	Ω	80		120
3.3V LVCMOS Electrical Characteristics
Input High Voltage	3.3VIH	V	2.0		Vcc+0.3
Input Low Voltage	3.3VIL	V	-0.3 –		0.8
Input Leakage Current	3.3IIN	uA	-10		+ 10
Output HighVoltage(Ioh=100uA)	3.3VOH	V	Vcc-0.2 –		–
Output Low Voltage(Ioi = 100uA)	3.3VOL	V			0.2
Minimum Pulse Width of ControlPin Signal	T_CNTL	us	100
1.2V LVCMOS Electrical Characteristics
Input High Voltage	1.2VIH	V	0.84		1.5
Input Low Voltage	1.2VIL	V	-0.3		0.36

Input Leakage Current	1.2IIN	uA	-100		+ 100
Output HiqhVoltaqe	1.2VOH	V	1.0		1.5
Output Low Voltaqe	1.2VOL	V	-0.3		0.2
Output Hiqh Current	1.2IOH	mA			-4
Output Low Current	1.2IOL	mA	+4
Input Capacitance	Ci	pF			10
Optical Transmitter Characteristics
Signaling Rate for Each Lane (100GbE)		Gbps	–	25.78125+/-100ppm
Signaling Rate for Each Lane (OTU4)				27.95249+/-20ppm
Four Lane Wavelength Range	入1	nm	1294.53	1295.56	1296.59
	入2		1299.02	1300.05	1301.09
	入3		1303.54	1304.58	1305.63
	入4		1308.09	1309.14	1310.19
Side Mode Suppression Ratio	SMSR	dB	30		–
Total Average Launch Power（100GbE)	Pt	dBm	–		10.5
Total Average Launch Power(OTU4)					8.9
Average Launch Power for Each Lane(100GbE)	Pa	dBm	-4.3		+4. 5	2
Average Launch Power for Each Lane(OTU4)			-2.5		+2.9
Optical Modulation Amplitude for Each Lane	OMA	dBm	-1.3		4.5	3
Transmitter and Dispersion Penalty for Each Lanes(100GbE)		TDP			2.2
Transmitter and Dispersion Penalty for Each Lanes(OTU4)		TDP			1.5
Average Launch Power of Off Transmitter for Each Lanes	Poff	dBm	–		-30
Extinction Ratio (100GbE)	EX	dB	4
Extinction Ratio (OTU4)			7
Maximum channel power difference		dB			5
RIN20OMA		dB/Hz			-130
Optical Return Loss Tolerance		dB			20
Transmitter Reflectance		dB			-12	4
Eye Diagram		Compliant with IEEE 802.3ba-2010/G.959.1)
Optical Receiver Characteristics
Receive Rate for Each Lane(100GbE)		Gbps		25.78125+/-100ppm
Receive Rate for EachLane(OTU4)				27.95249+/-20ppm
Four Lane Wavelength Range	入1		1294.53	1295.56	1296.59
	入2	nm	1299.02	1300.05	1301.09
	入3		1303.54	1304.58	1305.63
	入4		1308.09	1309.14	1310.19
Overload Input Optical Power	Pmax	dBm	4.5			5
Total Input Optical Power(OTU4)	Pt	dBm			8.9
Average Receive Power for Each Lane(100GbE)	Pin	dBm	-10.6		4.5	6&7
Average Receive Power for Each Lane(OTU4)			-8.8		2.9
Receive Power In OMA for Each Lane	PinOMA	dBm	–		4.5
Difference in Receive Power between Any Two Lanes		dBm	–		5.5
Receiver Sensitivity in OMA for Each lanellanelabLane(100GbE)	Pmin	dBm			-8.6	8
Receiver Sensitivity for Each Lane(OTU4)					-10.3	9
StressedReceiver Sensitivity in OMA for Each Lane		dBm			-6.8	10&11
Los Assert		dBm	-20		-15
Los De-assert		dBm			-14
Los Hysteresis		dBm	0.5
Chromatic Dispersion		Ps/nm	-28.5		+9.5
Maximum reflectance of optical network element		dB			-26
Delay Group differencial		ps			8

Note1. The supply current includes CFP module’s supply current and test board working current.
Note2. Average launch power ,each lane(min) is informative and not the principal indicator of signal strength. A transmitter with launch power below this value cannot be compliant;however, a value above this does not ensure compliance
Note3. Even if the TDP<1dB, the OMA(min) must exceed this value
Note4. Transmitter reflectance is defined looking into the transmitter
Note5. The receiver shall be able to tolerate , without damage, continuous exposure to an optical input signal having this average power level
Note6. The average receive power , each lane (max) for 100GBASE-ER4 is larger than the 100BASE-ER4 transmitter value to allow compatibility with 100BASE-LR4 units at short distances
Note7. Average receive power, each lane (min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance
Note8. Receiver sensitivity (OMA), each lane (max) is informative
Note9. Measured with PRBS 231-1 for BER=10-5. The BER for the OTU4 application is required to be met only after FEC has been applied.
Note10. Measured with conformance test signal at TP3 for BER=10-12 Note11. conditions of stressed receiver sensitivity test: vertical eye closure penalty for each lane is 1.8dB;stressed eye J2 jitter for each lane is 0.3UI; stressed eye J9 jitter for each lane is 0.47UI.

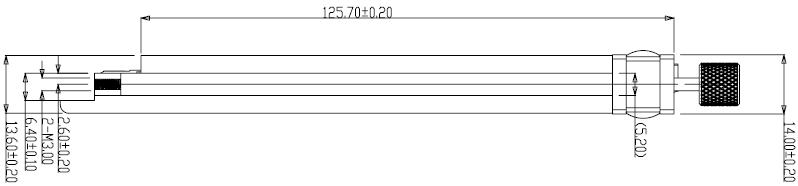

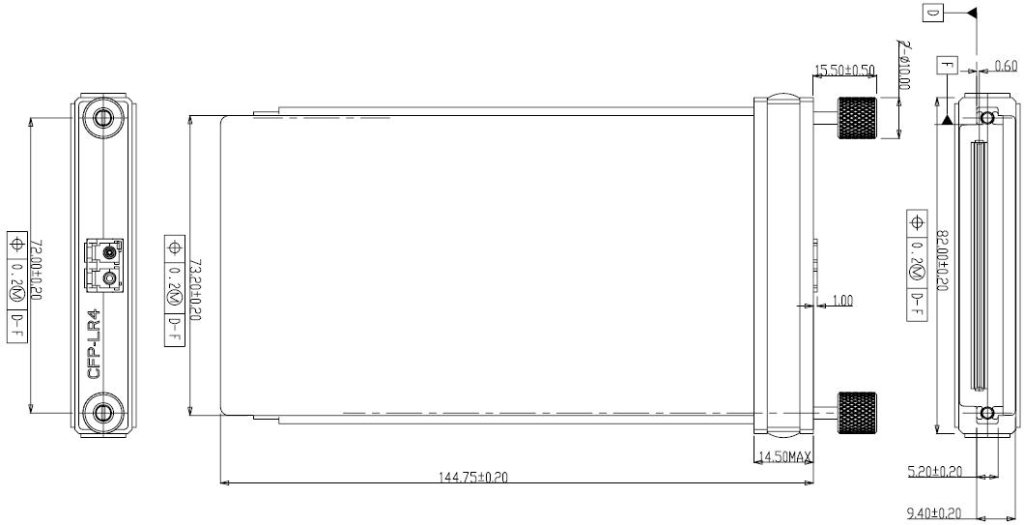

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTC1-HG-LR4	CFP, 100GE/OTU4,10km,100GBASE-LR4, Pout -4.3 ~ +4.5 PIN <-8.6dBm,0ºC ~ +70ºC
FTC1-HG-LR4I	CFP, 100GE/OTU4,10km,100GBASE-LR4, Pout -4.3 ~ +4.5 PIN <-8.6dBm,-40ºC ~ +85ºC
