40Gbase-SR4 QSFP+ to MPO Jumper

Description
40G QSFP+ to MPO Jumper are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. F-tone Networks 40G QSFP to MPO Jumper is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features
● Full duplex 4 channel 850nm parallel active optical cable to MPO Jumper, Multi-mode
● Transmission data rate up to 10.3Gbit/s per channel
● SFF-8436 QSFP+ compliant
● Hot pluggable electrical interface
● Differential AC-coupled high speed data interface
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Low power consumption <1.5W
● 3.3V power supply voltage
● RoHS 6 compliant
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● Infiniband transmission at 4ch SDR, DDR and QDR
● 40GBASE-SR4 40G Ethernet
● Data Centers

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	0	70	ºC
Humidity(non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	0		70	ºC
Data Rate Per Lane	fd	2.5		10.3	Gbps
Humidity	Rh	5		85	%
Power Dissipation	Pm			1.5	W
Fiber Bend Radius	Rb	3			cm

Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude  aAmplitude	ΔVin	300		1100	mVp-p
Differential output voltage amplitude	ΔVout	500		800	mVp-p
Skew	Sw			300	ps
Bit Error Rate	BR			E-12
Input Logic Level High	VIH	2.0		VCC	V
Input Logic Level Low	VIL	0		0.8	V
Output Logic Level High	VOH	VCC-0.5		VCC	V
Output Logic Level Low	VOL	0		0.4	V

Note：

1.   BER=10^-12; PRBS 2^31-1@10.3125Gbps.
2.   Differential input voltage amplitude is measured between TxnP and TxnN
3.   Differential output voltage amplitude is measured between RxNP and RxnN

Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	840	850	860	nm	–
RMS spectral width	∆λ	–	–	0.65	nm	–
Average launch power, each lane	Pout	-7.6	–	2.4	dBm	–
Difference in launch powerbetween any two lanes (OMA)				4	dB	–
Extinction Ratio	ER	3	–	–	dB	–
Peak power, each lane				4	dBm	–
ransmitter and dispersionpenalty (TDP), each lane	TDP			3.5	dB	–
Average launch power of OFF transmitter, each lane				-30	dBm	–
Eye Mask coordinates:  X1, X2, X3, Y1, Y2, Y3	SPECIFICATION VALUES0.23, 0.34, 0.43, 0.27, 0.35, 0.4						Hit Ratio = 5×10-5
Receiver
Centre Wavelength	λc	840	850	860	nm	–
Stressed receiver sensitivity in OMA,each lane				-5.4	dBm	1
Maximum Average power at receiver input, each lane				2.4	dBm	–
Receiver Reflectance				-12	dB	–
Peak power, each lane				4	dBm	–
LOS Assert		-30			dBm	–
LOS De-Assert – OMA				-7.5	dBm	–
LOS Hysteresis		0.5			dB	–

Note：
1．Measured with conformance test signal at TP3 for BER = 10e-12

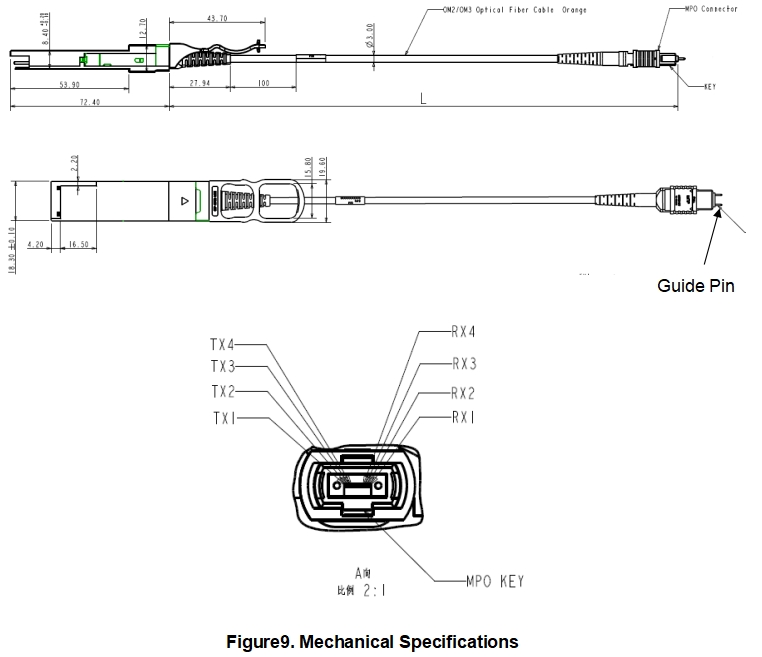

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCQ-4X-SR4-M1-xxx	40GBase-SR4 QSFP+ to MPO Jumper, xxx=different cable lengths on OM3 Multimode Fiber,0ºC ~ +70ºC
FTCQ-4X-SR4-M1-xxxI	40GBase-SR4 QSFP+ to MPO Jumper,xxx=different cable lengths on OM3 Multimode Fiber,-40ºC ~ +85ºC

xx(x)	Cable Length on OM3 Multimode Fiber (MMF)
D05	D05=0.5m
03	003=3m
05	005=5m
10	010=10m
20	020=20m
50	050=50m
300	300=300m

References
1. SFF-8436 QSFP+
2. Infiniband IB-4x-SX, IB-4x-DDR-SX, IB-4x-QDR-SX
3. Ethernet 40GBASE-SR4
