Description
F-tone Networks QSFP+ to 8 x LC Connector Breakout Optical Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4.
F-tone Networks QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. These breakout cables connect to a 40G QSFP+ port of a switch on one end and to four 10G SFP+ Transceivers of a switch on the other end.

Features

Full duplex 4 channel 850nm parallel active optical cable
Transmission data rate up to 10.3Gbit/s per channel
SFF-8436 QSFP+ compliant
Hot pluggable electrical interface
Differential AC-coupled high speed data interface
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
Low power consumption
Housing isolated from connector ground
3V power supply voltage
RoHS 6 compliant
Case operating temperature

Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃

Applications

Infiniband transmission at 4ch SDR, DDR and QDR
40GBASE-SR4 40G Ethernet
Data Centers

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	0	70	ºC
Humidity(non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	0		70	ºC
Data Rate Per Lane	fd	2.5		10.3	Gbps
Humidity	Rh	5		85	%
Power Dissipation	Pm			1.5	W
Fiber Bend Radius	Rb	3			cm

Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude	ΔVin	180		1200	mVp-p
Differential output voltage amplitude	ΔVout	500		800	mVp-p
Skew	Sw			300	ps
Bit Error Rate	BR			E-12
Input Logic Level High	VIH	2.0		VCC	V
Input Logic Level Low	VIL	0		0.8	V
Output Logic Level High	VOH	VCC-0.5		VCC	V
Output Logic Level Low	VOL	0		0.4	V

Note：
1. BER=10^-12; PRBS 2^31-1@10.3125Gbps.
2. Differential input voltage amplitude is measured between TxNp and TxNn.
3. Differential output voltage amplitude is measured between RxNp and RxNn.

Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	840	850	860	nm	–
RMS spectral width	∆λ	–	–	0.65	nm	–
Average launch power, each lane	Pout	-7.6	–	2.4	dBm	–
Difference in launch power between any two lanes (OMA)				4	dB	–
Extinction Ratio	ER	3	–	–	dB	–
Peak power, each lane				4	dBm	–
ransmitter and dispersionpenalty (TDP), each lane	TDP			3.5	dB	–
Average launch power of OFF transmitter, each lane				-30	dBm	–
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3	SPECIFICATION VALUES0.23, 0.34, 0.43, 0.27, 0.35, 0.4						Hit Ratio = 5×10-5
Receiver
Centre Wavelength	λc	840	850	860	nm	–
Stressed receiver sensitivity in OMA,each lane				-5.4	dBm	1
Maximum Average power at receiver input, each lane				2.4	dBm	–
Receiver Reflectance				-12	dB	–
Peak power, each lane				4	dBm	–
LOS Assert		-30			dBm	–
LOS De-Assert – OMA				-7.5	dBm	–
LOS Hysteresis		0.5			dB	–

Note：1．Measured with conformance test signal at TP3 for BER = 10e-12

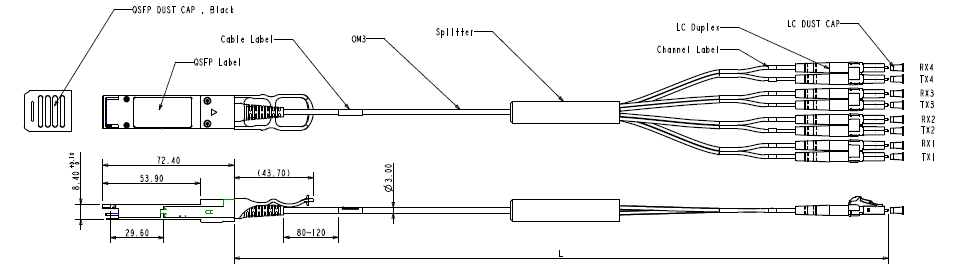

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCQ-4X-SR4-8LC-xxx	xxx=different cable lengths on OM3 Multimode Fiber (MMF),0ºC ~ +70ºC
FTCQ-4X-SR4-8LC-xxxI	xxx=different cable lengths on OM3 Multimode Fiber (MMF),-40ºC ~ +85ºC

xx(x)	Cable Length on OM3 Multimode Fiber (MMF)
03	003=3m
05	005=5m
10	010=10m
20	020=20m
50	050=50m
300	300=300m

References
1. SFF-8436 QSFP+
2. Infiniband IB-4x-SX, IB-4x-DDR-SX, IB-4x-QDR-SX
3. Ethernet 40GBASE-SR4
