400G QSFP-DD DR4 2km光模块

Description
The F-tone Networks FTQD-4H-DR4xx is a transceiver module designed for 2km optical communication applications, and it is compliant to QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 425 Gigabit signal is carried over four parallel lanes by one wavelength per lane. This module can convert 8-channel 53.125 Gbit/s electrical data to 4 parallel channels of optical signals, each supporting106.25 Gbit/s data transmission. Reversely, it can convert 4-channel 106.25 Gbit/s optical signals to 8-channel electrical output data on the receiver side. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Features
● QSFP-DD MSA rev 5.1 and CMIS rev4p0 compliant
● Compliant to 802.3bs 400GBASE-DR4
● 8×53.125Gbit/s PAM4 electrical interface(400GAUI-8)
● 4×106.25Gbps(53.125GBd PAM4)Optics architecture
● Power consumption <10W
● Maximum link length of 2km G.652 SMF with KP-FEC
● MPO receptacles
● Built-in digital diagnostic functions
● 3.3V power supply voltage
● RoHS compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● IEEE 802.3bs 400GBASE-DR4
● Data center network

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	0	70	ºC
Humidity(non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	0		70	ºC
Data Rate Per Lane	fd		106.25		Gbit/s
Humidity	Rh	5		85	%
Power Dissipation	Pm			10	W

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude	ΔVin			900	mVp-p
Differential output voltage amplitude	ΔVout			900	mVp-p
Skew	Sw			300	ps
Bit Error Rate	BER			2.4E-4	–
Near-end Eye Width at 10^-6 probability(EW6)		0.265			UI
Near-end Eye Height at 10^-6 probability(EH6)		70			mV
Far-end Eye Width at 10^-6 probability(EW6)		0.20			UI
Far-end Eye Height at 10^-6 probability(EH6)		30			mV
Near-end Eye Linearity		0.85			–

Note：

• BER=2.4E-4; PRBS31Q@26.5625GBd. Pre-FEC
• Differential input voltage amplitude is measured between TxnP and TxnN.
• Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics
Table 3 – Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	1304.5		1317.5	nm	–
Side-mode suppression ratio	SMSR	30	–	—	dB	–
Average launch power, each lane	Pout	-2.9	–	4.0	dBm	–
Optical Modulation Amplitude(OMA outer), each lane	OMA	-0.8	–	4.2	dBm	–
Transmitter and dispersion eye closure(TDEC),each lane	TDEC			3.4	dB
Extinction Ratio	ER	3.5	–	–	dB	–
Average launch power of OFF transmitter, each lane				-15	dB	–
Receiver
Centre Wavelength	λc	1304.5		1317.5	nm	–
Receiver Sensitivity in  OMA outer	RXsen			-4.4	dBm	1
Average power at receiver , each laneinput, each lane	Pin	-5.9		4	dBm	–
Receiver Reflectance				-26	dB	–
LOS Assert		-15			dBm	–
LOS De-Assert – OMA				-8.4	dBm	–
LOS Hysteresis		0.5			dB	–

Note：Measured with conformance test signal at TP3 for BER = 2.4E-4 Pre-FEC

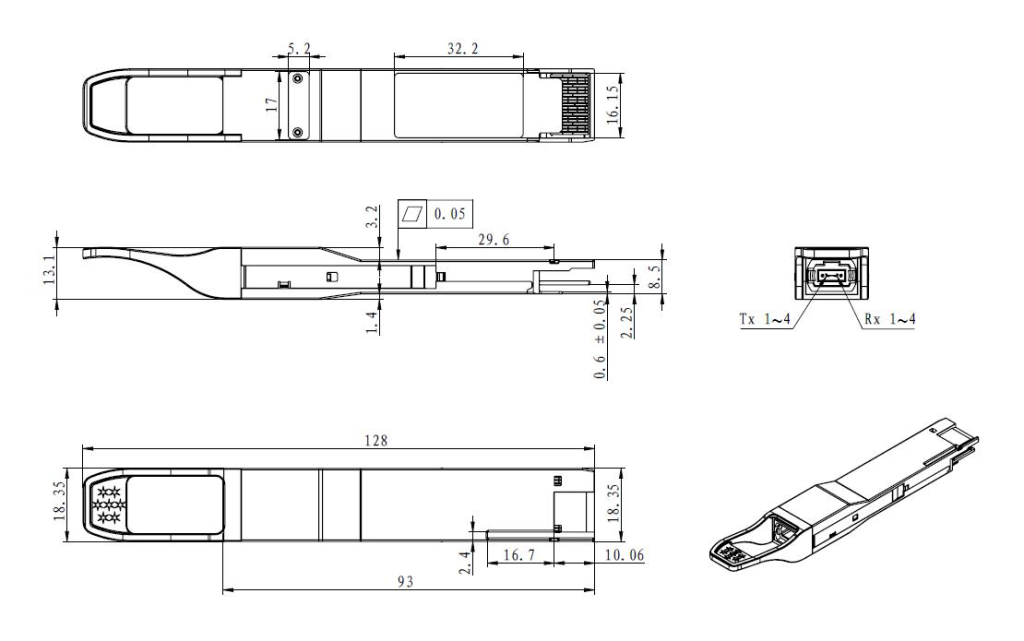

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTQD-4H-DR4	QSFP DD, 400GBASE-DR4, 2km on Single mode Fiber (SMF),with DSP Power consumption <10W, MPO-12 connector,0~+70℃
FTQD-4H-DR4I	QSFP DD, 400GBASE-DR4, 2km on Single mode Fiber (SMF),with DSP Power consumption <10W, MPO-12 connector,-40~+85℃

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
