Features
● Smallsize
● Low powerconsumption
● Flat frequencyresponse
● Excellent EMI/EMCdesign
● High dynamic input and outputrange
● Wide operating frequency from 2MHz to1.5GHz
● APC maintain small vibration of output power and IP3
Applications
● SecureCommunications
● GPS SignalTransport
● Cellular/Wireless SignalTransport
● Analog SignalDistribution
● RF/IF signaldistribution
● Distributed AntennaSystem
Absolute Maximum Ratings
Typical Specification
| Noise Figure(1) | NF | TxNoGain,Rxwith Gain(@1GHz) | — | 33 | 36 | dB |
| Phase Noise(1) | 500MHz，@10Hz | — | -100 | — | dBc/Hz | |
| 500MHz，@100Hz | — | -110 | — | dBc/Hz | ||
| 500MHz，@1KHz | — | -120 | — | dBc/Hz | ||
| Power Consumption | -5V, Tx No Gain,Typical | — | 0.1 | 0.4 | W | |
| +5V, Rx with Gain,Typical | — | 0.77 | 1.0 | W | ||
| Operating Voltage | V | -5V@Tx，+5V@Rx | VDC | |||
Note (1): Test at 0dB optical insertion loss.
Connector
| Type | Connector |
| RF | SSMA (50Ω) |
| Optical | FC/APC |
| Optical Fiber Type | SMF-28(Standard) |
| Power & Monitor | EMI Low Pass Filter Feed Through Capacitor |
PIN Function
Optical Transmitter:
| PIN | Name | Direction | Note |
| 1 | POWER | Ⅰ | -5V |
| 2 | GND | Ⅰ | GND |
Optical Receiver:
| PIN | Name | Direction | Note |
| 1 | POWER | Ⅰ | +5V |
| 2 | GND | Ⅰ | GND |
Note: When using the module, the bottom of the module needs to be fully cooled.

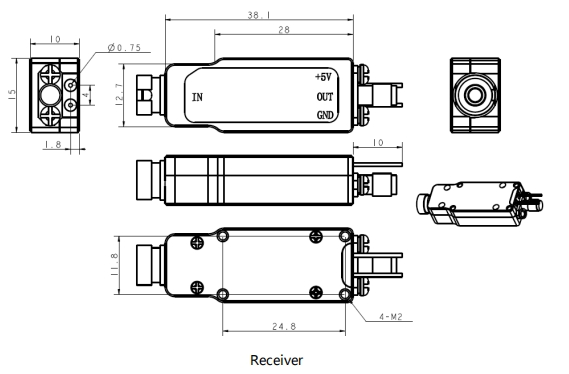

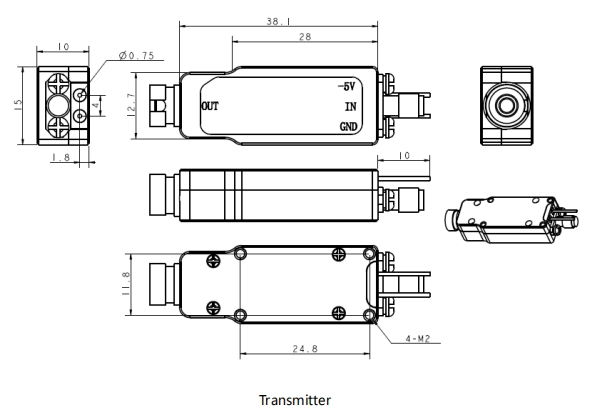

Mechanical (unit: mm)
Ordering Options
-Optical Transmitter
| FTRFT | – | 0 | P | N | xxx | F | S | – | U | 000 |
| Transmitter | GainN: No Gain | Laser Wavelength270: 1270nm…………………..570: 1570nm | Temperature RangeU: -20 to 50℃ |
Optical Receiver
| FTRFR | – | 0 | P | G | B00 | F | S | – | U | 000 |
| Receiver | GainG: With Gain | Wavelength Range1100nm ~ 1620nm | Temperature RangeU: -20 to 50℃ |
