100GBASE-SR4 QSFP28 to 2x QSFP28有源光缆

Description
F-tone Networks QSFP28 to 2 x QSFP28 breakout Active Optical Cable is a Four-Channel, Parallel, Fiber-Optic QSFP28 SR4 for 100 or 40 Gigabit Ethernet , Infiniband FDR/EDR and 32GFC Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 112.2 Gbps bandwidth. Each lane can operate at 28.05Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
● 4 channels full-duplex transceiver modules
● Transmission data rate up to 28Gbps per channel
● Support 40GE and 56G FDR data rate
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Support CDR bypass
● Low power consumption : QSFP28-100G < 2.5W and QSFP28-50G <1.6W
● Hot Pluggable QSFP form factor
● Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
● Single MPO connector receptacle
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4
● Infiniband FDR/EDR
● 32G Fiber Channel

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	0	70	ºC
Humidity(non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	0		70	ºC
Data Rate Per Lane	fd		25.78125	28.05	Gbps
Humidity	Rh	5		85	%
Power Dissipation QSFP28 end	Pm		2	2.5	W
Power Dissipation Fanout QSFP28 end			1.3	1.6	W
Fiber Bend Radius	Rb	3			cm

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude  aAmplitude	ΔVin	300		1100	mVp-p
Differential output voltage amplitude	ΔVout	500		800	mVp-p
Skew	Sw			300	ps
Input Logic Level High	VIH	2.0		VCC	V
Input Logic Level Low	VIL	0		0.8	V
Output Logic Level High	VOH	VCC-0.5		VCC	V
Output Logic Level Low	VOL	0		0.4	V

Note：
1.   Differential input voltage amplitude is measured between TxnP and TxnN.
2.   Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics
Table 3 – Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	840	850	860	nm	–
RMS spectral width	∆λ	–	–	0.6	nm	–
Average launch power, each lane	Pout	-8.4	–	2.4	dBm	–
Optical Modulation Amplitude(OMA),each lane	OMA	-6.4		3	dBm	–
Transmitter and dispersion eye closure(TDEC),each lane	TDEC			4.3	dB
Extinction Ratio	ER	3	–	–	dB	–
Average launch power of OFFtransmitter, each lane				-30	dB	–
Eye Mask coordinates:   X1, X2, X3, Y1, Y2, Y3	SPECIFICATION VALUES{0.3,0.38,0.45,0.35,0.41.0.5}						Hit Ratio = 5×10-5
Receiver
Centre Wavelength	λc	840	850	860	nm	–
Stressed receiver sensitivity in OMA				-5.2	dBm	1
Maximum Average power at receiver , each laneinput, each lane				2.4	dBm	–
Minimum Average power at receiver , each lane				-10.3	dBm
Receiver Reflectance				-12	dB	–
LOS Assert		-30			dBm	–
LOS De-Assert – OMA				-7.5	dBm	–
LOS Hysteresis		0.5			dB	–

 Note：1．Measured with conformance test signal at TP3 for BER = 1e-5

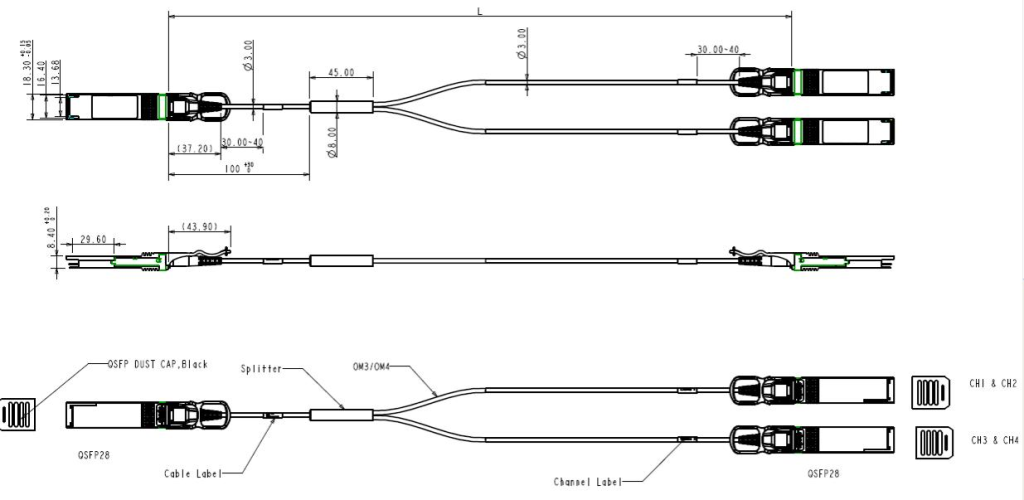

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTQ2-HG-2Q2-Oxx	QSFP28 to 2 x QSFP28, 100GBASE-SR4, Active Optical Cable  70m on OM3 Multimode Fiber (MMF)and 100m on OM4  Low power version,0ºC ~ +70ºC
FTQ2-HG-2Q2-OxxI	QSFP28 to 2 x QSFP28, 100GBASE-SR4, Active Optical Cable  70m on OM3 Multimode Fiber (MMF)and 100m on OM4  Low power version,-40ºC ~ +85ºC

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
