100G QSFP28 ZR4 光模块

Description
This product is a 100Gbps transceiver module designed for optical communication applications compliant to 100GBASE-ZR4. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EML transmitters and high sensitivity PIN+SOA receivers provide superior performance for 100Gigabit Ethernet applications up to 80km links.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
● 4 channels full-duplex transceiver modules
● Transmission data rate up to 27.95Gbps per channel
● 4 X 25/28G LAN-WDM EML Integrated TOSA Cooling transmitter
● 4 X PIN+SOA Receivers
● Internal CDR circuits on both receiver and transmitter channels
● Power consumption < 6W
● Hot Pluggable QSFP form factor
● Up to 80km transmission on single mode fiber
● Duplex LC receptacles
● Built-in digital diagnostic functions
● 3.3V power supply voltage
● RoHS compliant(lead free)
● Operating case temperature :
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃
Applications
● 100GBASE-ZR4

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	0	70	ºC
Humidity(non-condensing)	Rh	5	85	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	0		70	ºC
Data Rate Per Lane	fd		25.78125	27.9525	Gbps
Humidity	Rh	5		85	%
Power Dissipation	P			6	W
Link Distance with G.652	D			80	km

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Power Consumption	P			6	W
Supply Current	Icc			1.9	A
Transmitter(each Lane)
Differential Input Voltage Swing	Vin			900	mVpp
Differential Input Impedance	Zin	90	100	110	Ohm
Receiver(each Lane)
Differential Output Voltage Swing	Vout	300		900	mVpp
Differential Output Impedance	Zout	90	100	110	Ohm

Optical Characteristics

QSFP28 100GBASE-ER4
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Data Rate, each Lane	fd		25.78125	27.9525	Gbps
Lane Wavelength	L0	1294.53	1295.56	1296.59	nm
	L1	1299.02	1300.05	1301.09	nm
	L2	1303.54	1304.58	1305.63	nm
	L3	1308.09	1309.14	1310.19	nm
Transmitter
SMSR	SMSR	30			dB
Total Average Launch Power	PT	6		10.5	dBm
Average Launch Power,each Lane	PAVG	0		4.5	dBm
Difference in launch power between any two lanes(Average and OMA) between any Two Lanes (OMA)	Ptx,diff			3.6	dB
Extinction Ratio	ER	8			dB
RIN20OMA	RIN			-130	dB/Hz
Optical Return Loss Tolerance	TOL			20	dB
Transmitter Reflectance	RT			-12	dB
Eye Mask coordinates:X1, X2, X3, Y1, Y2, Y3		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}				1
Average Launch Power OFF Transmitter, each Lane	Poff			-30	dBm
Receiver
Average Receive Power, each lane(OTU4)		-28		-3.5	dBm
Average Receive Power, each lane(100GE)		-29		-3.5	dBm
Equivalent Sensitivity for Each lane(OTU4)	SEN			-28	dBm	2
Receiver sensitivity Average, each lane(100GbE)	SEN			-29	dBm	2
LOS Assert	LOSA	-38			dBm
LOS Deassert	LOSD			-29	dBm
LOS Hysteresis	LOSH	0.5			dB
Receiver Electrical 3 dB upper Cutoff Frequency, each Lane	Fc			31	GHz

Note：

• See Figure below.
• Sensitivity is specified at BER@5E-5 with FEC.

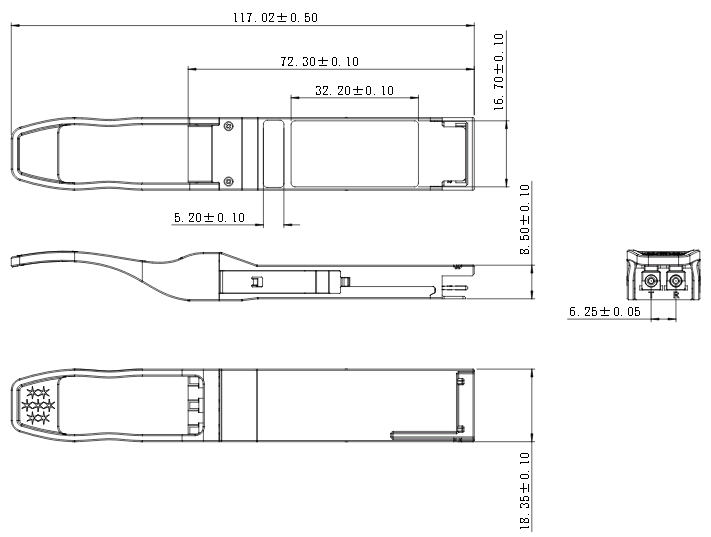

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTQ2-HG-ZR4	100GE,OTU4, QSFP28, 100GBASE-ZR4, LAN_WDM 80km, 0 ~ +70℃
FTQ2-HG-ZR4I	100GE,OTU4, QSFP28, 100GBASE-ZR4, LAN_WDM 80km,-40 ~ +85℃
