100G-DR1 QSFP28光模块

Description
The F-tone Networks 100G DR1 500m QSFP28 optical transceiver, 100G QSFP28 DR1 (FTQ2-HG-DR1xx) is designed for using in 100-Gigabit Ethernet links up to 500m over Single-Mode Fiber (SMF). It is compliant with the QSFP28 MSA ,802.3cu 100GBASE DR1 and CAUI-4(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. It integrates 4 data lanes in each direction with 4×25.78125Gb/s bandwidth. The electrical interface uses a 38-contact edge type connector. The optical interface uses a Duplex LC connector. This module incorporates F-tone Networks proven circuit and Silicon Photonics technology to provide reliable long life, high performance, and consistent service.

Features
● Compliant to 802.3cu
● 100GE DR1 Specification compliant
● 1 channel full-duplex transceiver modules
● Full-duplex transceiver module
● 4×25.78125Gbit/s NRZ electrical interface(CAUI-4)
● 106.25Gb/s PAM4 based on Silicon Photonics
● 4W maximum power dissipation
● Hot-pluggable QSFP28 form factor
● Maximum link length of 500m on G.652 SMF with KP-FEC
● Duplex LC receptacles
● Built-in digital diagnostic functions
● Single 3.3V power supply
● RoHS compliant (lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● IEEE 802.3cu 100GE DR1

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Ts	-20	85	ºC
Case Operating Temperature	Tc	0	70	ºC
Humidity (non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tc	0	–	70	ºC
Data Rate Per Lane	fd		106.25	–	Gb/s
Humidity	Rh	5	–	85	%
Power Dissipation	Pm	–	–	4	W
Link Distance with G.652	D	–	–	2	km

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential Input Impedance	Zin	90	100	110	ohm
Differential Output Impedance	Zout	90	100	110	ohm
Differential Input Voltage Amplitude1	ΔVin	–	–	1600	mVp-p
Differential Output Voltage Amplitude2	ΔVout	–	–	900	mVp-p

Note:

• Differential input voltage amplitude is measured between TxnP and TxnN.
• Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	1304.5	–	1317.5	nm	–
Side-mode suppression ratio	SMSR	30	–	–	dB	–
Average launch power	Pout	-2.9	–	4	dBm	–
Optical Modulation Amplitude(OMA outer)	OMA	-0.8	–	4.2	dBm	–
Transmitter and dispersion eye closure(TDEC)	TDEC	–	–	3.4	dB
Extinction Ratio	ER	3.5	–	–	dB	–
Average launch power of OFF transmitter		–	–	-15	dB	–
Receiver
Centre Wavelength	λc	1304.5	–	1317.5	nm	–
Receiver Sensitivity in  OMA outer	RXsen	–	–	-1.9	dBm	1
Average receive power	Pin	-5.9	–	4	dBm	–
Receiver Reflectance		–	–	-26	dB	–
LOS Assert		-15	–	–	dBm	–
LOS De-Assert – OMA		–	–	-7	dBm	–
LOS Hysteresis		0.5	–	–	dB	–

Note:Measured with conformance test signal at TP3 for BER = 2.4E-4 Pre-FEC

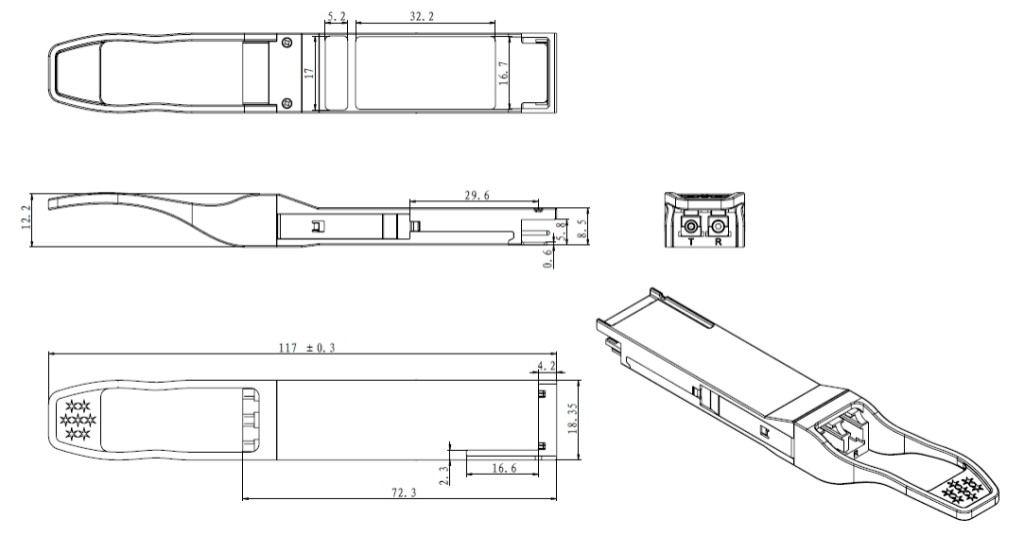

Mechanical Dimensions

Ordering Information

Part Number	Product Description
FTQ2-HG-DR1	QSFP28 DR1, 106.25Gb/s, 500m, SMF, Dual LC,0 ~ +70℃
FTQ2-HG-DR1I	QSFP28 DR1, 106.25Gb/s, 500m, SMF, Dual LC,-40 ~ +85℃

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.details are available from any F-tone Networks sales representative.sentative.ther details are available from any F-tone Networks sales representative.urther details are available from any F-tone Networks sales representative.e Networks sales representative.tive.s or others. Further details are available from any F-tone Networks sales representative.y F-tone Networks sales representative.
