1×9 Receiver,MM,850nm,DC-10M,1km

Product Description
F-tone Networks’s FTTR-RxxL2-xxxx receiver modules are theperfect solution for ultral low speed communication networks.These receiver modules support data rates up to 10Mbps. The module is fully compliant with the Multil sourced 1×9 protocol.These receiver modules provides the system designer with products to RS232/RS485/RS422 fiber transmission.

Product Features
● 3.3V or 5Vpower supply
● SC/ST/FC single optical interface
● (LV)TTL Output and ( LV)TTL signal detect
● Operating case temperature range (Standard：0 to+70℃) or (Industrial： -40°C to +85°C)

Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product . It’s not implied that the product would function above the recommended operating environment,it’s possible to re duce the reliability and lifetime of device if Recommended Operating Environment is exceeded(Refer to table 2)

Table 1— Absolute Maximum Conditions

Parameter		Symbol	Min	Max	Units	Note
Storage Temperature		TST	-40	+85	℃	–
Relative Humidity		RH	5	95	%	–
Supply Voltage	3.3V power	VCC	0	+3.6	V	–
	5V power		0	+6		–

Table 2— Recommended Operating Environment and Electrical Characteristics

Parameter		Symbol	Min	Typ	Max	Units	Note
Supply Voltage	3.3V power	VCC	+3.1	+3.3	+3.5	V	–
	5V power		+4.75	+5.0	+5.25		–
Supply Current		Icc	–	–	60	mA	–
Operating Case Temperature		TOP	0	–	+70	℃	1
			-40	–	+85		2
Data Rate		B	DC	–	10	Mbps	–
Soldering temperature(electric-soldering-iron)		–	–	–	350	℃	3
Soldering duration(electric-soldering-iron)		–	–	–	5	Sec	3

Note
1.standard level
2.industrial level
3.Not recommended wave soldering.

Optical Parameters

Table 3— FTTR-R85L2-02xx Transceiver Optical Characteristics (Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3 or 5.0±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Receiver
Receiver Sensitivity		Pmin	–	–	-14	dBm	1,2
Receiver Saturation		Pmax	-3	–	–	dBm	1,2
Operation Center Wavelength		λc	770	–	860	nm	–
SD	Deassert	PD	-30	–	–	dBm	1,2
	Assert	PA	–	–	-14	dBm	1,2
SD Hysteresis		SDHYS	0.5	–	–	dB	–

Note1 ：The optical power is launched into 62.5/125μm MMF.
Note2 ：With 10Mbps. If keep 0 1 level duty ratio of 45%:55%, sensitivity control as   ≤- 13dBm.

Table 4— FTTR–RM13L2-02xx Receiver Optical Characteristics (Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Receiver
Receiver Sensitivity		Pmin	–	–	-14	dBm	1,2
Receiver Saturation		Pmax	-3	–	–	dBm	1,2
Operation Center Wavelength		λc	1260	–	1620	nm	–
SD	Deassert	PD	-30	–	–	dBm	1,2
	Assert	PA	–	–	-14	dBm	1,2
SD Hysteresis		SDHYS	0.5	–	–	dB	–

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With 10Mbps. If keep 0 1 level duty ratio of 45%:55%, sensitivity control as   ≤- 13dBm. Table 5— FTTR–RCxxL2-20xx Receiver Optical Characteristics

(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Receiver
Receiver Sensitivity		Pmin	–	–	-15	dBm	1,2
Receiver Saturation		Pmax	-3	–	–	dBm	1,2
Operation Center Wavelength		λc	1260	–	1620	nm	–
SD	Deassert	PD	-30	–	–	dBm	1,2
	Assert	PA	–	–	-15	dBm	1,2
SD Hysteresis		SDHYS	0.5	–	–	dB	–

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With 10Mbps. If keep 0 1 level duty ratio of 45%:55%, sensitivity control as   ≤- 14dBm.

Electrical Parameters
Table 6— Receiver Electrical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3 ±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Supply Voltage	3.3V power	VCC	+3.1	+3.3	+3.5	V	–
	5V power		+4.75	+5.0	+5.25		–
Supply Current		ICC	–	–	60	mA	–
Receiver
Data Output Voltage – Low		VOL	0	–	0.4	V	1
Data Output Voltage – High		VOH	2.4	–	VCC	V	1
SD Output Voltage-Low		VOL	0	–	0.8	V	1
SD Output Voltage-High		VOH	2	–	VCC	V	1

Note1 ：(LV)TTL signal detect

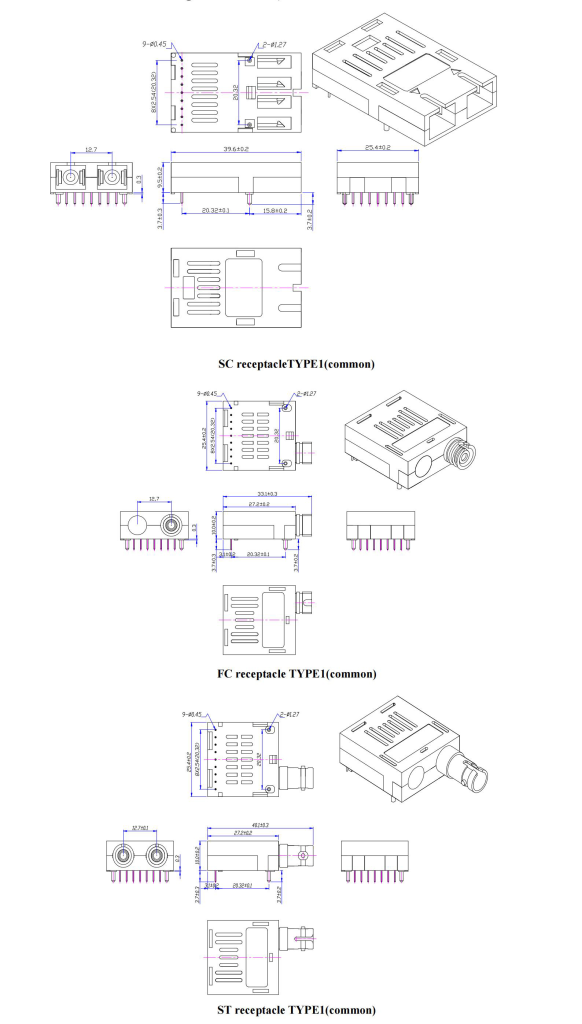

Module Outline Drawing（Units in mm)

Order Information

产品型号	基本参数
FTTR-R85L2-02	1×9 光模块-单收-多模-850-0~10M-1KM-商业级
FTTR-RM13L2-02	1×9 光模块-单收-多模-1310-0~10M-2KM-商业级
FTTR-RCxxL2-20	1×9 光模块-单收-单模-1260~1620nm-0~10M-20KM-商业级
FTTR-R85L2-02I	1×9 光模块-单收-多模-850-0~10M-1KM-工业级
FTTR-RM13L2-02I	1×9 光模块-单收-多模-1310-0~10M-2KM-工业级
FTTR-RCxxL2-20I	1×9 光模块-单收-单模-1260~1620nm-0~10M-20KM-工业级

北亿纤通 | F-tone Networks

企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
