QSFP-DD光模块

产品简介
采用可热插拔的QSFP-DD封装；8通道全双工收发一体模块；8通道激光器阵列和PIN光电探测器阵列；接收和发射通道内置CDR电路（DSP）；符合QSFP-DD MSA和IEEE 802.3cd 200GBASE-SR4标准；最大速率高达425Gbps（8路50G PAM4）；工作温度，提供商业级和工业级可选；电源电压3.3V；符合RoHS环保标准（无铅；广泛应用于广电、电信、移动、联通、航天、航空、军工、船舰、电力、铁路、医疗、交通、通信、电信运营商、工业控制、电力控制等各大领域数据中心或其他光纤通信

产品特点

• 采用可热插拔的QSFP-DD封装
• 8通道全双工收发一体模块
• 8通道激光器阵列和PIN光电探测器阵列
• 接收和发射通道内置CDR电路（DSP）
• 符合QSFP-DD MSA和IEEE 802.3cd 200GBASE-SR4标准
• 最大速率高达425Gbps（8路50G PAM4）
• 工作温度，提供商业级和工业级可选
• 电源电压3V
• 符合RoHS环保标准（无铅）

产品选型：

产品型号	产品描述	基本参数
FTQD-2H-SR8	QSFPDD-200G-SR8	QSFPDD-200G-850nm-MPO
FTQD-2H-500M	QSFPDD-200G-500M	QSFPDD-200G-1310nm-500M
FTQD-2H-IR8	QSFPDD-200G-IR8	QSFPDD-200G-1310nm-2KM
FTQD-2H-CWDM4-IR8	QSFPDD-200G-CWDM4-IR8	QSFPDD-200G-CWDM4-2KM-LC
FTQD-2H-CWDM4-LR8	QSFPDD-200G-CWDM4-LR8	QSFPDD-200G-CWDM4-10KM-LC

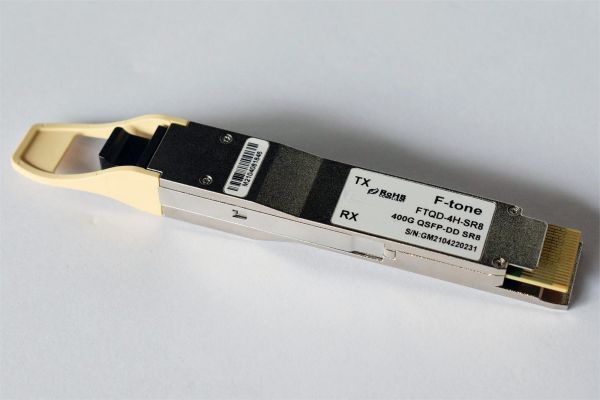

FTQD-4H-SR8	QSFPDD-400G-SR8	QSFPDD-400G-850nm-MPO
FTQD-4H-500M	QSFPDD-400G-500M	QSFPDD-400G-1310nm-500M
FTQD-4H-IR8	QSFPDD-400G-IR8	QSFPDD-400G-1310nm-2KM
FTQD-4H-CWDM4-IR8	QSFPDD-400G-CWDM4-IR8	QSFPDD-400G-CWDM4-2KM-LC
FTQD-4H-CWDM4-LR8	QSFPDD-400G-CWDM4-10R8	QSFPDD-400G-CWDM4-10KM-LC
FTQD-2H-SR8I	QSFPDD-200G-SR8I	QSFPDD-200G-850nm-MPO-工业级
FTQD-2H-500MI	QSFPDD-200G-500MI	QSFPDD-200G-1310nm-500M-工业级
FTQD-2H-IR8I	QSFPDD-200G-IR8I	QSFPDD-200G-1310nm-2KM-工业级
FTQD-2H-CWDM4-IR8I	QSFPDD-200G-CWDM4-IR8I	QSFPDD-200G-CWDM4-2KM-LC-工业级
FTQD-2H-CWDM4-LR8I	QSFPDD-200G-CWDM4-10R8I	QSFPDD-200G-CWDM4-10KM-LC-工业级
FTQD-4H-SR8I	QSFPDD-400G-SR8I	QSFPDD-400G-850nm-MPO-工业级
FTQD-4H-500MI	QSFPDD-400G-500MI	QSFPDD-400G-1310nm-500M-工业级
FTQD-4H-IR8I	QSFPDD-400G-IR8I	QSFPDD-400G-1310nm-2KM-工业级
FTQD-4H-CWDM4-IR8I	QSFPDD-400G-CWDM4-IR8I	QSFPDD-400G-CWDM4-2KM-LC-工业级
FTQD-4H-CWDM4-LR8I	QSFPDD-400G-CWDM4-LR8I	QSFPDD-400G-CWDM4-10KM-LC-工业级

注：可定制各种波长，各种速率，各种传输距离的光模块，如有需求，请联系我司市场人员

北亿纤通 | F-tone Networks

企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
