CFP2 Receiver,100G/OTU4, ER4,40km

Description
The F-tone Networks CFP2 100GEBASE-ER4 optical Receiver is a hot pluggable 100Gbps small-form-factor transceiver module. It is designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber. It is compliant with the CFP MSA, IEEE 802.3ba 100GBASE ER4 and OTU4 4L1-9C1F. Digital diagnostics functions are available via the MDIO interface. On the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The module is a multi-rate optical transceiver which data rate up to 28Gbps per channel. The high performance PIN-base Integrated ROSA with SOA provide superior performance for Telecom and Datacom applications up to 40km links.

Features
● Data rate up to 28Gbps per channel
● Only 4 channels PIN-base Integrated ROSA with SOA(without transmitter)
● Compliant with CFP2 MSA hardware specification
● Compliant with CFP MSA management specification
● Compliant to IEEE 802.3ba specification for 100GBASE-ER4
● Compliant to OTU4
● Transmission distance up to 40km on SMF
● 4 parallel electrical serial interface and AC coupling of CML signals
● MDIO real-time digital diagnostic(Optional) and control capabilities
● Internal CDR circuits on receiver channels
● Hot pluggable
● Total Power Consumption < 3.5 W
● 3.3V power supply
● LC receptacle optical interface
● RoHS 6 compliant(lead free)
● Case operating temperature
       Commercial: 0 ~ +70℃
       Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3ba 100GBASE-ER4
● ITU-T G.959.1 OTU4 (4L1-9C1F)
● Switch to switch interface or Switch to router interface

Absolute Maximum Ratings

Parameter	Symbol	Unit	Min	Max
Supply Voltage	VCC	V	-0.5	3.6
Storage Temperature	Ts	°C	-40	85
Operating Case Temperature	Tc	°C	0	70
Relative Humidity (Non condensation)	–	%	5	85

Recommended Operating Conditions

Parameter	Symbol	Unit	Min	Typ	Max
Operating Case Temperature	Tc	°C	0	–	70
Supply Voltage	VCC	V	3.13	3.3	3.47
Supply Current	ICC	A	–	–	2.8
Power Dissipation	–	W	–	–	3.5

Optical Characteristics(Tested under recommended operating conditions, unless otherwise noted)

Parameter	Symbol	Unit	Value			Notes
			Min	Typ	Max
Optical Receiver Characteristics
Receiver Sensitivity in OMA for Each Lane(100GbE)	Pmin	dBm	–	–	-21.4	1
Equivalent Sensitivity for Each Lane(OTU4)					-23.2
Los Assert		dBm	-35		-26
Los De-assert		dBm			-25
Los Hysteresis		dBm	0.5
Damage Threshold, each Lane	THd	dBm	5.5			2
Receive Power In OMA for Each Lane	PinOMA	dBm			4.5
Difference in Receive Power between any Two Lanes (Average and OMA)	Prx,diff	dB			4.5
Average Receive Power for Each Lane(100GbE)	Pin	dBm	-20.9		4.5
Average Receive Power for Each Lane(OTU4)			-20.7		4.5

 Note:
1. Minimum average optical power measured at BER less than 1E-12, with a 2³¹-1 PRBS.
2. The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.

Electrical Characteristics(Tested under recommended operating conditions, unless otherwise noted)

Parameter	Symbol	Unit	Min	Typ	Max	Note
Differential Data Output Swing	Vout,pp	mV	300	–	850
Differential Input Voltage Swing	Vin,pp	mV			900
Differential Signal Output Resistance		Ω	90	–	110
Differential Signal Input Resistance		Ω	90	–	110

Low Speed Electrical Interface

Parameter	Symbol	Unit	Min	Max	Note
Input Voltage	VIH	V	2.0	Vcc3 + 0.3	1
	VIL	V	-0.3	0.8
Output Voltage	VOH	V	Vdd3-0.5	Vdd3 + 0.3
	VOL	V	0.0	0.4
Input Leakage Current	3.3VIL	uA	-10	10
Minimum Pulse Width of Control Pin Signal	T_CNTL	us	100
1.2V LVCMOS Electrical Characteristics
Input High Voltage	1.2VIH	V	0.84	1.5
Input Low Voltage	1.2VIL	V	-0.3	0.36
Input Leakage Current	1.2IIN	uA	-100	+ 100
Output High Voltage	1.2V0H	V	1.0	1.5
Output Low Voltage	1.2V0L	V	-0.3	0.2
Output High Current	1.2I0H	mA		-4
Output Low Current	1.2I0L	mA	+4
Input Capacitance	Ci	pF		10

Note1: Vdd3 is host +3.3V power supply.

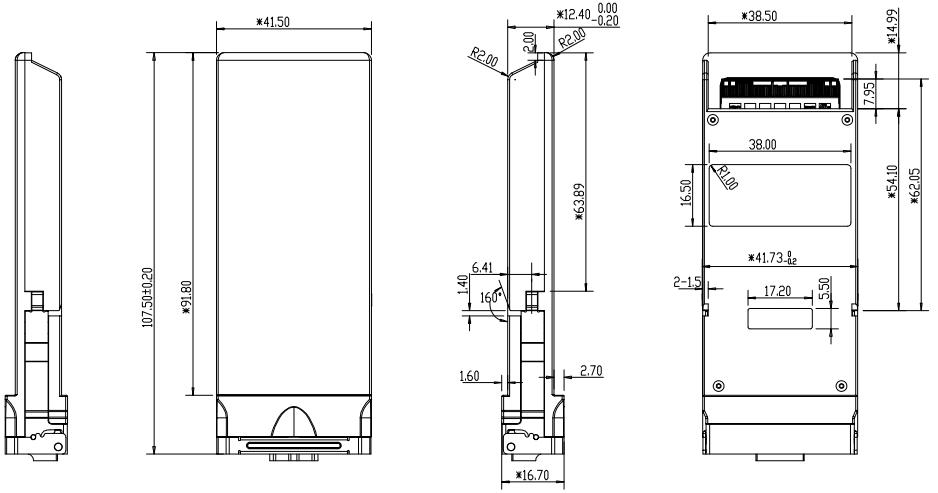

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTC2-HG-ER4R	CFP2, PIN-base Integrated ROSA with SOA (without TOSA),100GE/OTU4,40km,0ºC ~ +70ºC
FTC2-HG-ER4RI	CFP2, PIN-base Integrated ROSA with SOA (without TOSA),100GE/OTU4,40km,-40ºC ~ +85ºC

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为CFP2光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
