53G SFP56 SR 光模块

Description
The F-tone Networks FTCS-8550G-02Dxx is a single-Channel, Pluggable, Fiber-Optic SFP56 for 26.5625GBd PAM4 Ethernet Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates F-tone Networks proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
● full-duplex transceiver modules
● Transmission data rate up to 53Gbps per channel
● 53Gbps PAM4 transmitter and PAM4 receiver
● 850nm VCSEL array
● PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Power consumption <2W
● Hot Pluggable SFP form factor and Compliant with SFF-8431,SFF-8472
● Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
● Dual LC connector receptacle
● Built-in digital diagnostic functions
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● IEEE 802.3cd 50GBASE-SR

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	0	70	ºC
Humidity(non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	0		70	ºC
Data Rate Per Lane	fd		26.5625		GBd
Humidity	Rh	5		85	%
Power Dissipation	Pm			2	W

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude  aAmplitude	ΔVin			900	mVp-p
Differential output voltage amplitude	ΔVout			900	mVp-p
Skew	Sw			300	ps
Bit Error Rate	BER			2.4E-4	–
Near-end Eye Width at 10^-6 probability(EW6)		0.265			UI
Near-end Eye Height at 10^-6 probability(EH6)		70			mV
Far-end Eye Width at 10^-6 probability(EW6)		0.20			UI
Far-end Eye Height at 10^-6 probability(EH6)		30			mV
Near-end Eye Linearity		0.85			–

Note：
1.   BER=2.4E-4; PRBS31Q@26.5625GBd. Pre-FEC
2.  Differential input voltage amplitude is measured between TxnP and TxnN.
3.  Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics
Table 3 – Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	840	850	860	nm	–
RMS spectral width	∆λ	–	–	0.6	nm	–
Average launch power, each lane	Pout	-6	–	4	dBm	–
Optical  Modulation Amplitude(OMAouter), each lane	OMA	-4		3	dBm	–
Transmitter and dispersion eye closure(TDEC)	TDEC			4.9	dB
Extinction Ratio	ER	3	–	–	dB	–
Average launch power of OFF transmitter				-30	dB	–
Receiver
Centre Wavelength	λc	840	850	860	nm	–
Receiver Sensitivity in OMAout	RXsen			-6.5	dBm	1
Stressed Receiver Sensitivity in OMAout				-3.4	dBm	1
Maximum Average power at receiver , each laneinput, each lane				4	dBm	–
Minimum Average power at receiver , each lane		-7.9			dBm
Receiver Reflectance				-12	dB	–
LOS Assert		-10.5			dBm	–
LOS De-Assert – OMA				-10	dBm	–
LOS Hysteresis		0.5			dB	–

Note：Measured with conformance test signal at TP3 for BER = 2.4E-4 Per-FEC

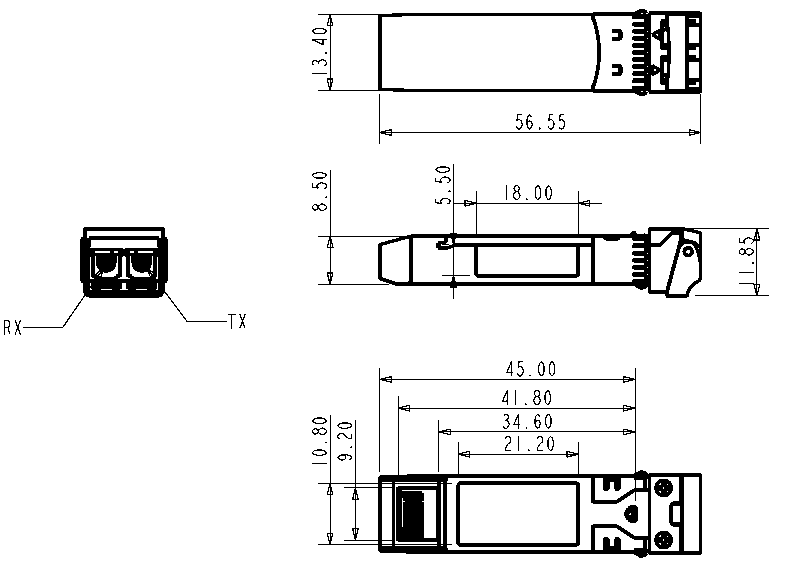

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCS-8550G-02D	26.5625GBd PAM4, 850nm, SFP56, OM4,MMF 100m, DDM, 0ºC ~ +70ºC
FTCS-8550G-02DI	26.5625GBd PAM4, 850nm, SFP56, OM4,MMF 100m, DDM, -40ºC ~ +85ºC
