400G QSFP-DD PSM8 2km光模块

Description
The F-tone Networks FTQD-4H-PSMDR4 is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2×200 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8×26.5625GBd. Each lane can operate at 53.125Gbps up to 2km using G.652 SMF with KP-FEC. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses a MPO16/MTP16 APC connector. The Common Management Interface Specification (CMIS) for QSFP DD modules. This module incorporates F-tone Networks Technologies proven circuit and EML technology to provide reliable long life, high performance, and consistent service.

Features
● 8 channels full-duplex transceiver modules
● Transmission data rate up to 53Gbps per channel
● 8x53Gbps PAM4 transmitter and PAM4 receiver
● 8 channels1310nm uncooled EML
● 8 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Power consumption <11W
● Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0
● Maximum link length of 2km G.652 SMF with KP-FEC
● MPO16 APC connector receptacle
● Built-in digital diagnostic functions
● Operating case temperature 20°C to +60°C
● 3.3V power supply voltage
● RoHS compliant(lead free)

Applications
● IEEE 802.3bs 200GBASE-DR4

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	3.6	V
Input Voltage	Vin	-0.3	Vcc+0.3	V
Storage Temperature	Tst	-20	85	ºC
Case Operating Temperature	Top	20	60	ºC
Humidity(non-condensing)	Rh	5	95	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	Vcc	3.13	3.3	3.47	V
Operating Case temperature	Tca	20		60	ºC
Data Rate Per Lane	fd		26.5625		GBd
Humidity	Rh	5		85	%
Power Dissipation	Pm			11	W

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude	ΔVin			900	mVp-p
Differential output voltage amplitude	ΔVout			900	mVp-p
Skew	Sw			300	ps
Bit Error Rate	BER			2.4E-4	–
Near-end Eye Width at 10^-6 probability(EW6)		0.265			UI
Near-end Eye Height at 10^-6 probability(EH6)		70			mV
Far-end Eye Width at 10^-6 probability(EW6)		0.20			UI
Far-end Eye Height at 10^-6 probability(EH6)		30			mV
Near-end Eye Linearity		0.85			–

Note：
1.   BER=2.4E-4; PRBS31Q@26.5625GBd. Pre-FEC
2.  Differential input voltage amplitude is measured between TxnP and TxnN.
3.  Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics
Table 3 – Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength	λc	1304.5	—	1317.5	nm	–
Side-mode suppression ratio	SMSR	30	–	—	dB	–
Average launch power, each lane	Pout	-5.1	–	3	dBm	–
Optical Modulation Amplitude(OMA outer), each lane	OMA	-3		2.8	dBm	–
Transmitter and dispersion eye closure(TDEC),each lane	TDEC			3.4	dB
Extinction Ratio	ER	3.5	–	–	dB	–
Average launch power of OFFtransmitter, each lane				-30	dB	–
Receiver
Centre Wavelength	λc	1304.5	—	1317.5	nm	–
Receiver Sensitivity in  OMA outer	RXsen			-6.6	dBm	1
Stressed Receiver Sensitivity in OMA outer	SRS			-4.1	dBm	1
Average power at receiver , each laneinput, each lane	Pin	-8.1		3	dBm	–
Receiver Reflectance				-12	dB	–
LOS Assert		-10			dBm	–
LOS De-Assert – OMA				-7.5	dBm	–
LOS Hysteresis		0.5			dB	–

Note：Measured with conformance test signal at TP3 for BER = 2.4E-4 Pre-FEC

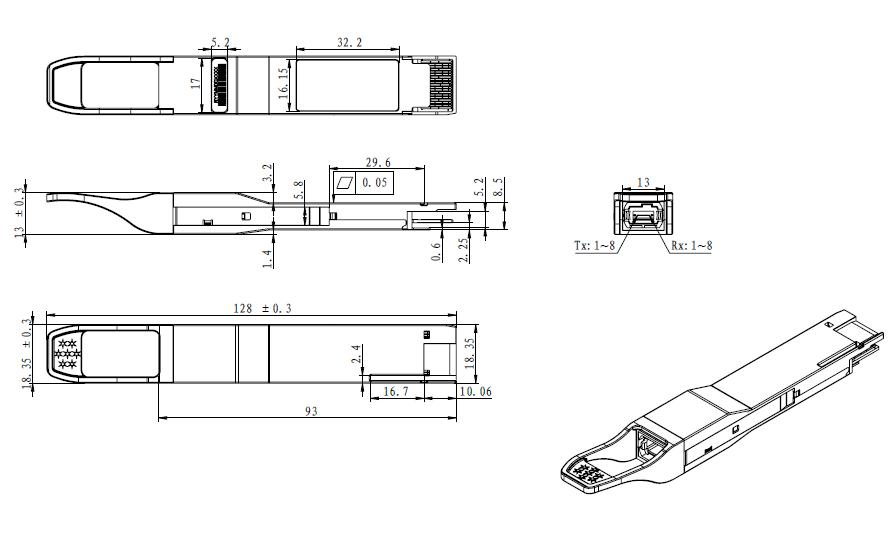

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTQD-4H-PSMDR4	QSFP DD, 2x200GBASE-DR4, 2km on Single mode Fiber (SMF),with DSP Power consumption <11W, MPO16(MTP16) APC connector.
