Features
● Low power consumption
● XFP form factor
● DOCSIS3.1 compatible
● SCTE 195 2013 compatible
● Double Optical Isolator
● LC/APC optical connection
● Fiber link up to 60km
● Excellent EMI/EMC design
● Automatic optical power control
● Operating frequency from 50MHz to 1.5GHz
Applications
● Antenna remoting
● Wireless signal transport
● All-Digital QAM network
● Data and video distribution
● Distributed antenna system

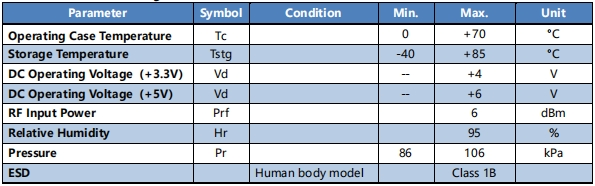

Absolute Maximum Ratings

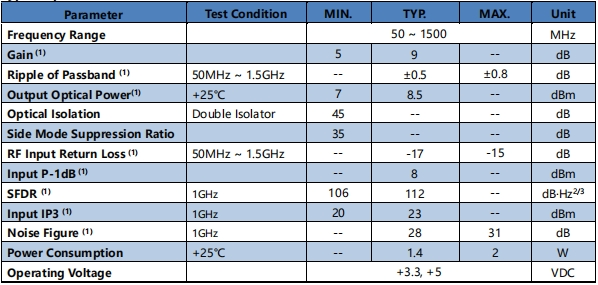

Typical Specification
Note(1):Test with F-tone Networks Optical Recriver and 1.0-meter SMF-28 fiber.Host system or chassis may degrade performance.

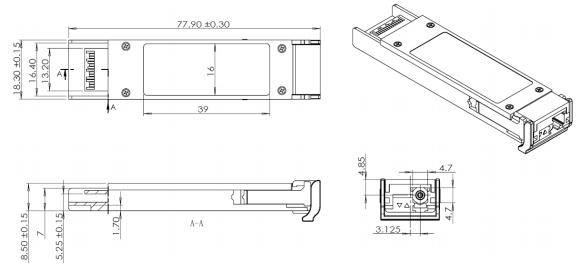

Mechanical (unit: mm)
Ordering Information
Optical Transmitter
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
