Description
This product is a 32G FC SFP28 transceiver designed for optical communication compliant with 25GE and 32G FC standard. Its high performance cooled EML transmitter and high sensitivity APD receiver provide superior performance for 25GE and 32G FC application up to 40km (with FEC) Links.
The product is designed with SFP28 form factor, which is the optical/electrical connection according to the SFP+ Multi-Source Agreement (MSA).

Features
● Hot-pluggable SFP28 form factor
● Supports 24.33/25.78Gb/s aggregate bit rate
● Supports 28.05Gb/s aggregate bit rate
● Transmitter: cooled 25Gb/sEML TOSA
● Receiver: 25Gb/s APD ROSA
● Internal CDR circuits on both receiver and transmitter channels
● 1.8W maximum power dissipation
● Maximum link length of 40Km over SMF
● Duplex LC receptacle
● Single 3.3V power supply
● RoHS compliant (2011/65/EU, lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃

Applications
● CPRI Option 10
● 25G Ethernet
● 32G FC

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	V_cc	-0.3	3.6	V
Input Voltage	V_in	-0.3	V_cc+0.3	V
Storage Temperature	T_s	-40	85	ºC
Case Operating Temperature	T_c	-40	85	ºC
Humidity (non-condensing)	Rh	0	85	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	V_cc	3.13	3.3	3.47	V
Operating Case Temperature	T_c	-40		85	ºC
Data Rate Per Lane	fd		24.33/25.78/28.05		Gb/s
Humidity	Rh	0		85	%
Power Dissipation	P_m			1.8	W
Fiber Bend Radius	R_b	3			cm

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential Input Impedance	Z_in	90	100	110	ohm
Differential Output Impedance	Z_out	90	100	110	ohm
Differential Input Voltage Amplitude¹	ΔV_in	300		1100	mVp-p
Differential Output Voltage Amplitude²	ΔV_out	500		800	mVp-p
Skew	Sw			300	ps
Input Logic Level High	V_IH	2.0		V_cc	V
Input Logic Level Low	V_IL	0		0.8	V
Output Logic Level High	V_OH	V_cc-0.5		V_cc	V
Output Logic Level Low	V_OL	0		0.4	V

Note:

Differential input voltage amplitude is measured between TxnP and TxnN.
Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit
Transmitter
Data rate	BR		28.05	–	Gbps
Optical Wavelength	λc	1295	1309	1325	nm
Side-Mode Suppression Ratio	SMSR	30			dB
Spectral Width (-20dB)	Δλ20	–	–	1	nm
Average Launch Power	P_out	-3		6	dBm
Optical Modulation Amplitude	OMA	0		6	dBm
Extinction Ratio	ER	7			dB
Average Launch Power of OFF Transmitter	P_off			-30	dB
Rin₂₀OMA				-130	dB/HZ
Receiver
Data rate	BR		28.05	–	Gbps
Center Wavelength	λ_c	1295		1325	nm
Average Receive Power	Pavg			-5	dBm
Receiver Sensitivity in OMA¹	RSoma			-19	dBm
Receiver Reflectance	R_R			-26	dB
LOS Assert	LOS_A	-30			dBm
LOS De-Assert	LOS_D			-17	dBm
LOS Hysteresis	LOS_H	0.5			dB

Note:Hit Ratio =5×10^–⁵. Unstressed receiver OMA sensitivity.

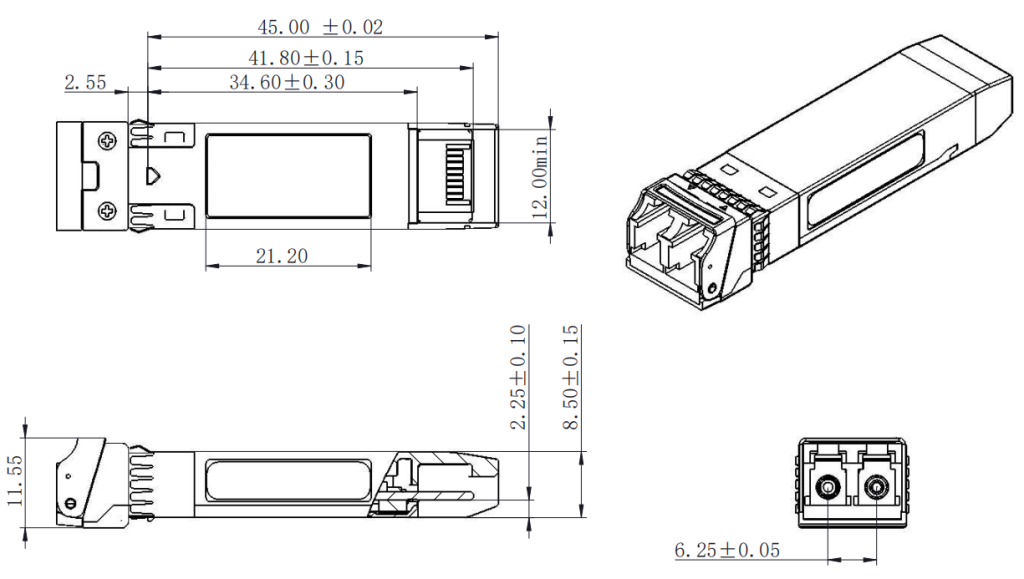

Mechanical Dimensions

Ordering Information

Part Number	Product Description
FTCS-1325G-40D	1310nm, SFP28, EML, 25G Ethernet, CPRI, 30KM/40km, 0ºC ~ +70ºC
FTCS-1325G-40DI	1310nm, SFP28, EML, 25G Ethernet, CPRI, 30KM/40km, -40ºC ~ +85ºC
