SFP+ CWDM Transceiver,10G,40km

Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.The transceiver consists of three sections: a uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Product Features
● Supports up to 10.7Gbps bit rates
● Hot-pluggable SFP+ footprint
● CWDM DFB laser and PIN photodiode, Up to 40km for SMF transmission
● Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
● Compatible with RoHS
● Single +3.3V power supply
● Real Time Digital Diagnostic Monitoring
● Operating case temperature:
● Standard: -5 to +70°C
● Industrial: -40 to +85°C

Applications
● 10Gbps CWDM Optical systems
● 10GBASE-LR at 10.3125Gbps
● 10GBASE-LW at 9.953Gbps
● LTE systems
● Other Optical links

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	–	5	85	%

Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
	Extended		-20		+80	°C
	Industrial		-40		+85	°C
Power Supply Voltage		Vcc	3.135	3.30	3.465	V
Power Supply Current		Icc			320	mA
Data Rate			8.0	10.3	10.7	Gbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	λc-6.5	λc	λc+6.5	nm
Spectral Width（-20dB）			Δλ			1	nm
Side-Mode Suppression Ratio			SMSR	30	–		dB
Average Output Power			Pout	0		+5	dBm	1
Extinction Ratio			ER	3.5			dB
Data Input Swing Differential			VIN	180		850	mV	2
Input Differential Impedance			ZIN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1260		1620	nm
Receiver Sensitivity						-16.0	dBm	3
Receiver Overload				0.5			dBm	3
LOS De-Assert			LOSD			-17	dBm
LOS Assert			LOSA	-28			dBm
LOS Hysteresis				0.5			dB
Data Output Swing Differential			Vout	300		900	mV	4
LOS			High	2.0		Vcc	V
			Low			0.8	V

Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 2³¹-1 test pattern @10312Mbps, BER ≤1×10^-12.
4. Internally AC-coupled.

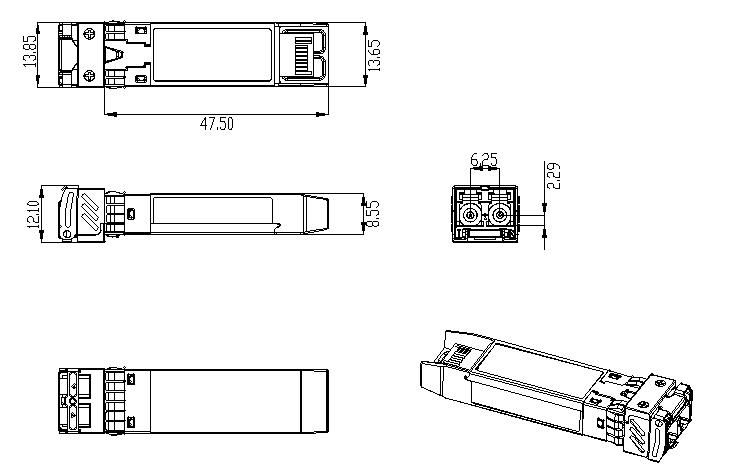

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCS-Cxx1X-40D	1270~1390nm CWDM, 10Gbps, LC, 40km, 0°C~+70°C, with DDM
FTCS-Cxx1X-40DI	1270~1390nm CWDM, 10Gbps, LC, 40km, -40°C~+85°C, with DDM

FTCS-Cxx1X-40Dxx λC Wavelength Guide
Code	λC	Unit	Code	λC	Unit	Code	λC	Unit	Code	λC	Unit
27	1270	nm	29	1290	nm	31	1310	nm	33	1330	nm
35	1350	nm	37	1370	nm	39	1390	nm
