SFP BIDI Transceiver,SM,Tx1550nm,155M,120km

Description
The SFP transceivers are high performance, cost effective modules supporting data rate of 125Mbps/155Mbps and 120km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Product Features
● Supports up to 155Mbps bit rates
● Hot-pluggable SFP footprint
● 1550nm DFB laser and PIN photo detector, Up to 120km for SMF transmission
● Compliant with SFP MSA and SFF-8472 with single LC receptacle
● Compatible with RoHS
● Single +3.3V power supply
● Real Time Digital Diagnostic Monitoring
● Operating case temperature:
     Standard: 0 to +70°C
     Industrial: -40 to +85°C

Applications
● 155Mbps Optical systems
● Fast Ethernet
● SONET OC-3 LR-2 / SDH STM L-1.2
● Other Optical links

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	–	5	85	%

Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
	Extended		-20		+80	°C
	Industrial		-40		+85	°C
Power Supply Voltage		Vcc	3.135	3.30	3.465	V
Power Supply Current		Icc			300	mA
Data Rate				155		Mbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1530	1550	1570	nm
Spectral Width（-20dB）			Δλ			1	nm
Side-Mode Suppression Ratio			SMSR	30	–	–	dB
Average Output Power			Pout	0		+5	dBm	1
Extinction Ratio			ER	9.0			dB
Data Input Swing Differential			VIN	180		1200	mV	2
Input Differential Impedance			ZIN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1470	1490	1510	nm
Receiver Sensitivity						-32	dBm	3
Receiver Overload				-8			dBm	3
LOS De-Assert			LOSD			-33	dBm
LOS Assert			LOSA	-45			dBm
LOS Hysteresis				0.5		4	dB
Data Output Swing Differential			Vout	600	800	1000	mV	4
LOS			High	2.0		Vcc	V
			Low			0.8	V

Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 2²³-1 test pattern @155Mbps, BER ≤1×10^-12.
4. Internally AC-coupled.

Timing and Electrical

Parameter	Symbol	Min	Typical	Max	Unit
Tx Disable Negate Time	t_on			1	ms
Tx Disable Assert Time	t_off			10	µs
Time To Initialize, including Reset of Tx Fault	t_init			300	ms
Tx Fault Assert Time	t_fault			100	µs
Tx Disable To Reset	t_reset	10			µs
LOS Assert Time	t_loss_on			100	µs
LOS De-assert Time	t_loss_off			100	µs
Serial ID Clock Rate	f_serial_clock		100	400	KHz
MOD_DEF (0:2)-High	VH	2		Vcc	V
MOD_DEF (0:2)-Low	VL			0.8	V

Diagnostics

Parameter	Range	Unit	Accuracy	Calibration
Temperature	0 to +70	°C	±3°C	Internal
	-20 to +80
	-40 to +85
Voltage	3.0 to 3.6	V	±3%	Internal
Bias Current	0 to 100	mA	±10%	Internal
TX Power	0 to +5	dBm	±3dB	Internal
RX Power	-32 to -6	dBm	±3dB	Internal

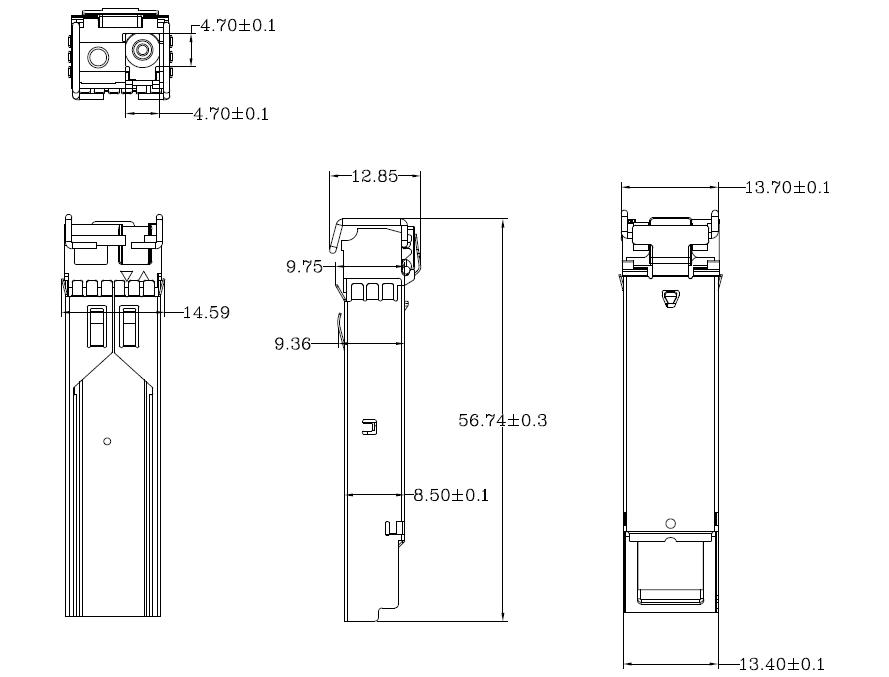

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCS-B5403-H2D	SFP-BIDI-T1550/R1490-155M-120KM-DDM-商业级
FTCS-B5403-H2DI	SFP-BIDI-T1550/R1490-155M-120KM-DDM-工业级

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品SFP BIDI光模块，仅展示部分参数，如有需要，请联系我们。
