SFP BIDI Transceiver,3G-SDI,20/35/40km

Product Description
      F-tone Networks’s FTCS-Bxx3G-xxxx series of transceiver modulesare the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 3Gbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).These transceiver modules provides the system designer with Camera, Video, HDTV/SDTV Fibre Channel applications.

Product Features
● DFB Laser Diode Transmitter
● Up to 40 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● CML Differential Input/Output and LVTTL signal detect
● Support Video Pathological Patterns for SD-SDI,HD-SDI and 3G-SDI
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to+70℃)

Application
● SMPTE 259M/292M/424M Compliant Electrical-to-Optical Interfaces
● HDTV/SDTV Fibre Channel applications

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It’s not implied that the product would function above the recommended operating environment, it’s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)
Table 1— Absolute Maximum Conditions

Parameter	Symbol	Min	Max	Units	Note
Storage Temperature	TST	-40	+85	℃	–
Relative Humidity	RH	5	95	%	–
Supply Voltage	VCC	0	+3.6	V	–

Table 2— Recommended Operating Environment and Electrical Characteristics

Parameter	Symbol	Min	Typ	Max	Units	Note
Supply Voltage	VCC	+3.1	+3.3	+3.5	V	–
Supply Current	Icc	–	–	300	mA	–
Operating Case Temperature	TOP	0	–	+70	℃	–
Data Rate	B	270	–	3000	Mbps	–

Optical Parameters
Table 3— FTCS-B133G-20xx Transceiver Optical Characteristics (Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Transmitter
Data rate		B	270	–	3000	Mbps	–
Output Center Wavelength		λc	1260	1310	1360	nm	–
Output Spectral width (-20dB)		λ	–	–	1	nm	–
Average Optical Output Power		Po	-5	–	0	dBm	1,2
Extinction Ratio		ER	5	–	–	dB	1,2
Optic Output Eye: Compliant ITU-T G.957							1,2
Receiver
Receiver Sensitivity		Pmin	–	–	-18	dBm	1,2
Receiver Saturation		Pmax	-3	–	–	dBm	1,2
Operation Center Wavelength		λc	1480	–	1580	nm	–
Loss of Signal	Assert	LOSA	-30	–	–	dBm	1,2
	Deassert	LOSD	–	–	-18	dBm	1,2
LOS Hysteresis		LOSHYS	0.5	–	–	dB	–

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 4— FTCS-B153G-20xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Transmitter
Data rate		B	270	–	3000	Mbps	–
Output Center Wavelength		λc	1480	1550	1580	nm	–
Output Spectral width (-20dB)		λ	–	–	1	nm	–
Average Optical Output Power		Po	-3	–	+2	dBm	1,2
Extinction Ratio		ER	5	–	–	dB	1,2
Optic Output Eye: Compliant ITU-T G.957							1,2
Receiver
Receiver Sensitivity		Pmin	–	–	-18	dBm	1,2
Receiver Saturation		Pmax	-3	–	–	dBm	1,2
Operation Center Wavelength		λc	1260	–	1360	nm	–
Loss of Signal	Assert	LOSA	-30	–	–	dBm	1,2
	Deassert	LOSD	–	–	-18	dBm	1,2
LOS Hysteresis		LOSHYS	0.5	–	–	dB	–

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 5— FTCS-B133G-35xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Transmitter
Data rate		B	270	–	3000	Mbps	–
Output Center Wavelength		λc	1260	1310	1360	nm	–
Output Spectral width (-20dB)		λ	–	–	1	nm	–
Average Optical Output Power		Po	-3	–	+2	dBm	1,2
Extinction Ratio		ER	5	–	–	dB	1,2
Optic Output Eye: Compliant ITU-T G.957							1,2
Receiver
Receiver Sensitivity		Pmin	–	–	-18	dBm	1,2
Receiver Saturation		Pmax	-3	–	–	dBm	1,2
Operation Center Wavelength		λc	1480	–	1580	nm	–
Loss of Signal	Assert	LOSA	-45	–	–	dBm	1,2
	Deassert	LOSD	–	–	-18	dBm	1,2
LOS Hysteresis		LOSHYS	0.5	–	–	dB	–

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 6— FTCS-B153G-40xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter		Symbol	Min	Typ	Max	Units	Note
Transmitter
Data rate		B	270	–	3000	Mbps	–
Output Center Wavelength		λc	1480	1550	1580	nm	–
Output Spectral width (-20dB)		λ	–	–	1	nm	–
Average Optical Output Power		Po	-3	–	+2	dBm	1,2
Extinction Ratio		ER	5	–	–	dB	1,2
Optic Output Eye: Compliant ITU-T G.957							1,2
Receiver
Receiver Sensitivity		Pmin	–	–	-18	dBm	1,2
Receiver Saturation		Pmax	-3	–	–	dBm	1,2
Operation Center Wavelength		λc	1260	–	1360	nm	–
Loss of Signal	Assert	LOSA	-30	–	–	dBm	1,2
	Deassert	LOSD	–	–	-18	dBm	1,2
LOS Hysteresis		LOSHYS	0.5	–	–	dB	–

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Electrical Parameters
Table 7— Transceiver Electrical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3 ±0.2V)

Parameter			Symbol	Min	Typ	Max	Units	Note
Supply Voltage			VCC	+3. 1	+3.3	+3.5	V	–
Supply Current			ICC	–	–	300	mA	–
Transmitter
Differential Input Voltage			Vin	400	–	2000	mVP-P	–
Input Differential Impedance			Zin	90	100	110	Ω	–
TX_DISABLE		Disable	VD	2.0	–	Vcc	V	–
		Enable	VEN	0	–	0.8		–
TX_ Fault		Fault	VF	2.0		VCC	V	–
		Normal	VN	0	–	0.8		–
Receiver
Differential Output Voltage			VOUT	400	–	2000	mVP-P	–
RX_LOS	Fault		VF	2.0	–	Vcc	V	–
	Normal		VN	0	–	0.8		–

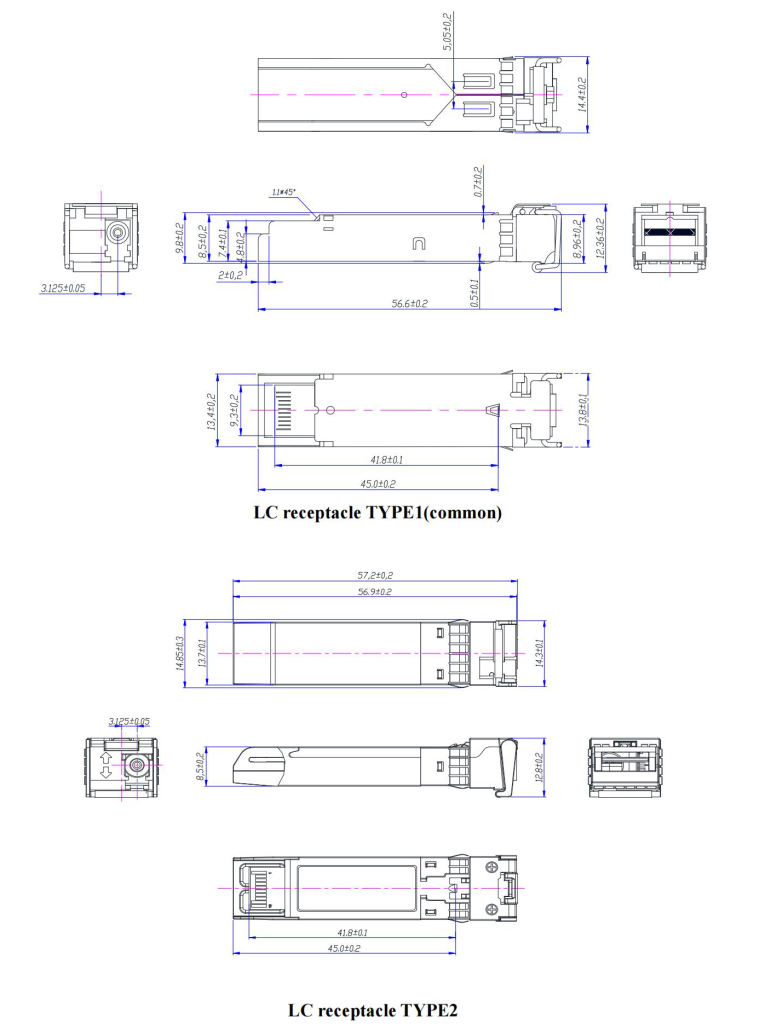

Module Outline Drawing（Units in mm)

Order Information

产品型号	基本参数
FTCS-B133G-20	SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-20KM-商业级
FTCS-B153G-20	SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-20KM-商业级
FTCS-B133G-35	SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-35KM-商业级
FTCS-B153G-40	SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-40KM-商业级
FTCS-B133G-20I	SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-20KM-工业级
FTCS-B153G-20I	SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-20KM-工业级
FTCS-B133G-35I	SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-35KM-工业级
FTCS-B153G-40I	SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-40KM-工业级

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品仅展示部分参数，如有需要，请您联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.er protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.ative.m any F-tone Networks sales representative.s sales representative.
