Features
● Low driver power requirements (TTL/CMOS Compatible)
● No moving parts
● High reliability
● Arc-Free with no snubbing circuits
● 3750Vrms Input/Output isolation
Applications
● Telecommunications (PC, Electronic notepad)
● Measuring and Testing equipment
● Industrial control
● Security equipments
● High speed inspection machine
Absolute Maximum Ratings (Ambient Temperature: 25℃)
| Item | Symbol | Value | Units | Note | |
| Input | Continuous LED Current | IF | 50 | mA | |
| Peak LED Current | IFP | 1000 | mA | f=100Hz, duty=1% | |
| LED Reverse Voltage | VR | 5 | V | ||
| Input Power Dissipation | PIn | 75 | mW | ||
| Output | Load Voltage | VL | 60 | V(AC peak or DC) | |
| Load Current | IL | 1.1 | A | ||
| Peak Load Current | IPeak | 2.5 | A | 100ms(1 pulse) | |
| Output Power Dissipation | Pout | 450 | mW | ||
| Total Power Dissipation | PT | 500 | mW | ||
| I/O Breakdown Voltage | VI/O | 3750 | Vrms | RH=60%, 1min | |
| Operating Temperature | TOpr | -40 to +85 | ℃ | ||
| Storage Temperature | TStg | -40 to +100 | ℃ | ||
| Pin Soldering Temperature | TSol | 260 | ℃ | 10 sec max. | |
Electrical Specifications (Ambient Temperature: 25℃)
| Item | Symbol | MIN. | TYP. | MAX. | Units | Conditions | |
| Input | LED Forward Voltage | VF | 1.2 | 1.4 | V | IF=10mA | |
| Operation LED Current | IF On | 0.5 | 3.0 | mA | |||
| Recovery LED Current | IF Off | 0.35 | 0.5 | mA | |||
| Recovery LED Voltage | VF Off | 0.5 | V | ||||
| Output | On-Resistance | ROn | 0.27 | 0.7 | Ω | IF=5mA,IL=100mA,Time to flow is within 1 sec. | |
| Off-State Leakage Current | ILeak | 1 | uA | VL=Rating | |||
| Output Capacitance | COut | 115 | pF | VL=0, f=1MHz | |||
| Transmis sion | Turn-On Time | TOn | 1.5 | 5.0 | ms | IF=5mA, IL=100mA, | |
| Turn-Off Time | TOff | 0.05 | 2.0 | ms | |||
| Coupled | I/O Isolation Resistance | RI/O | 1010 | Ω | DC500V | ||
| I/O Capacitance | CI/O | 0.8 | 1.5 | pF | f=1MHz | ||

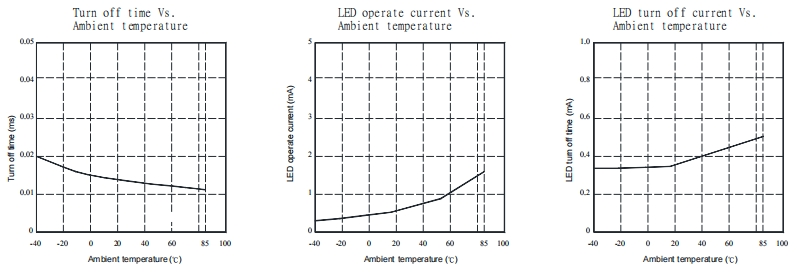

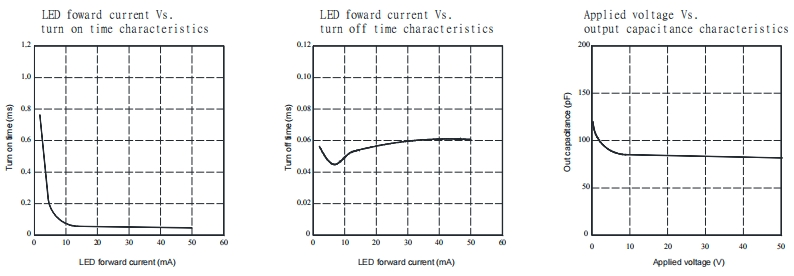

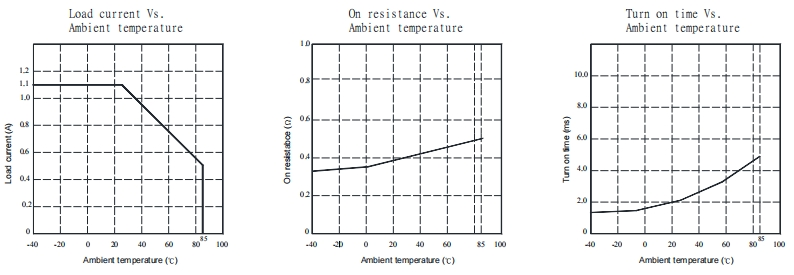

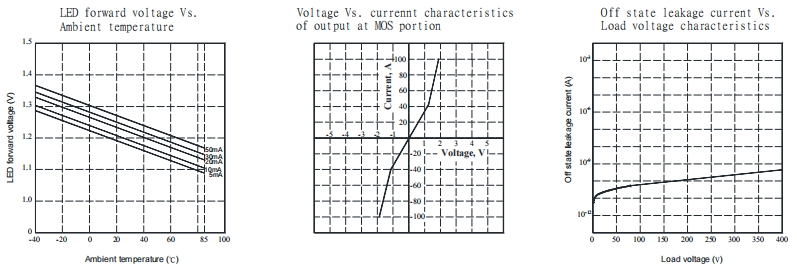

Reference Data
Dimensions

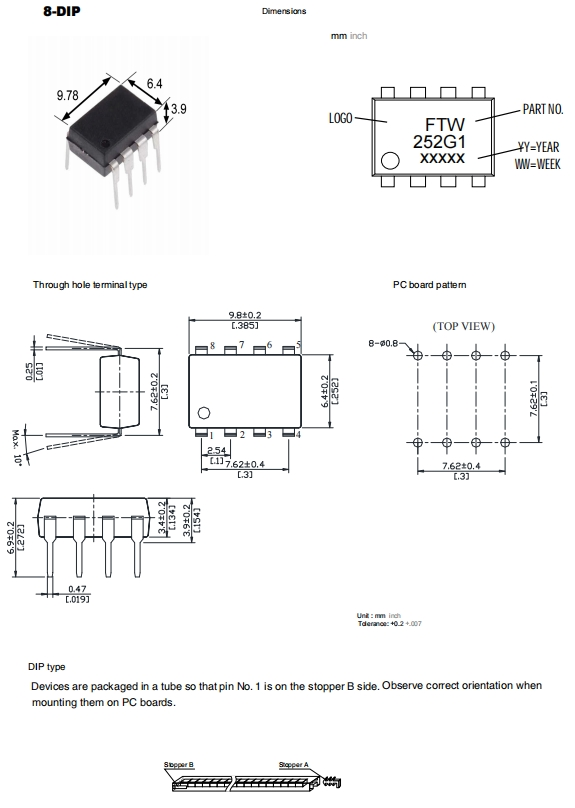

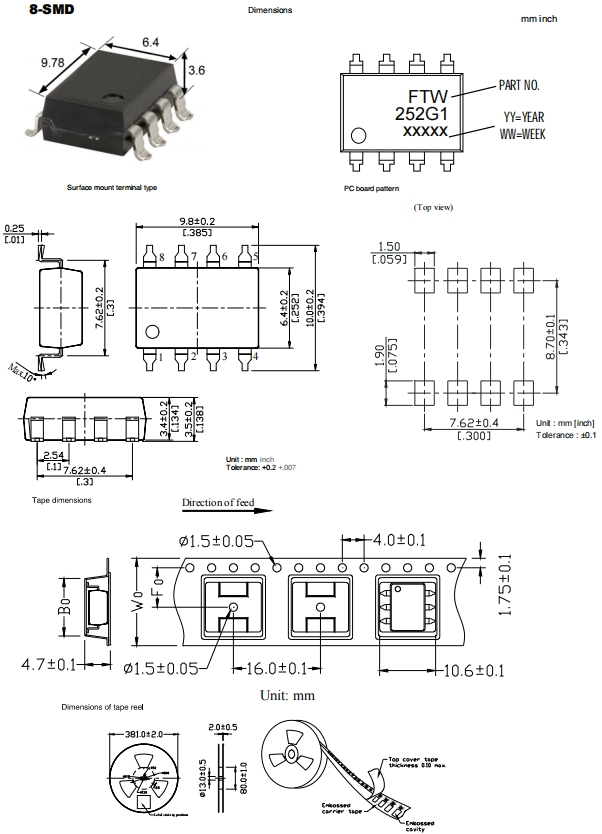

Outline Dimensions
订购信息
| Category | Output rating | Package | Part No. | Packing quantity | |
| Load voltage | Load current | ||||

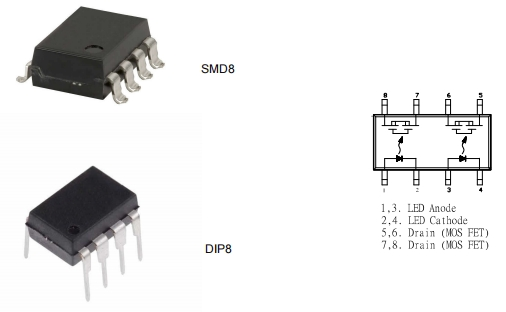

| AC/DC | 60V | 1.1A | DIP8 | FTW252G1E | 50pcs/tube |
| SMD8 | FTW252G1EH | 1000pcs/1reel | |||
