    DWDM Mux/Demux Module

    Features

    1) Low Insertion Loss

    2) High Isolation

    3) Low PDL

    4) Compact Design

    5) Good channel-to-channel uniformity

    6) Wide Operating Wavelength: From 1260nm to 1620nm

    7) Wide Operating Temperature: From -40℃ to 85℃

    8) High Reliability and Stability


    Applications

    1) DWDM System

    2) PON Networks

    3) CATV Links


    Compliance

    1) Telcordia GR-1209-CORE-2001

    2) Telcordia GR-1221-CORE-1999

    3) ITU-T G.694.1

    4) RoHS


    Specifications
    1×N DWDM Mux/Demux Module

    Parameters



    Channel Space (GHz)

    100

    200

    Channel Number

    1*4

    1*8

    1*16

    1*4

    1*8

    1*16

    Center Wavelength (nm)

    ITU Grid

    Center Wavelength Accuracy (nm)

    ± 0.05

    ± 0.1

    Channel Passband (@-0.5dB) (nm)

    0.22

    0.5

    Fiber Type

    SMF-28e with 900um loose tube or customer specified

    IL (dB)

    1.8

    3.0

    4.0

    1.7

    2.9

    3.8

    Passband Ripple (dB)

    0.35

    0.4

    0.5

    0.35

    0.4

    0.5

    Isolation (dB)

    Adjacent Channel

    25

    28

    Non-Adjacent Channel

    40

    PDL (dB)

    0.2

    PMD (ps)

    0.1

    RL (dB)

    45

    Directivity (dB)

    50

    Maximum Optical Power (mw)

    300

    Operating Temperature (℃)

    -40~85

    Storage Temperature (℃)

    -40~85

    BOX Package (mm)

    100*80*10 or 140*115*18

    LGX Package

    1U,2U

    19’’ Rack mount Package

    1U

     Notes:
    1) Specified without connectors.
    2) Add an additional 0.2dB loss per connector.

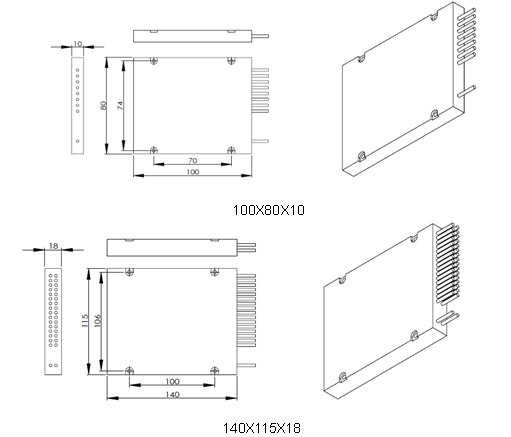

    Mechanical Dimensions (DWDM Mux/Demux Module)

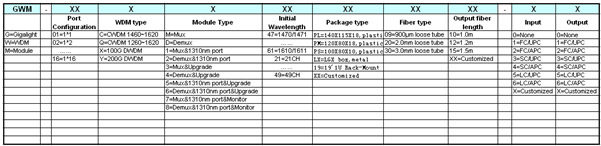

    Ordering information (CWDM Mux/Demux Module)
