产品描述：
北亿纤通（F-tone Networks）单模光子晶体光纤可在较宽的波长范围内具有较低的传输损耗和极低的非线性系数，截止波长在1μm 以下，在某种意义上是无限单模光纤。该光纤可连接到标准单模光纤或无截止单模光纤，也可使用密封端和FC/PC 连接器进行连接。
产品特点:
● 无截止单模
● 宽波段下的低衰减
● 弯曲不敏感
● 纯二氧化硅材料
产品应用
● 宽带传输
● 单模高功率激光输出
● 光纤传感
规格参数：
| 光学性能 | |||
|---|---|---|---|
| 截止波长(nm) | < 1000 | ||
| 衰减@ 1060 (dB/km) | < 3.0 | ||
| 衰减@ 1310 nm(dB/km) | < 3.0 | ||
| 衰减@ 1550 nm(dB/km) | < 2.5 | ||
| 物理特性 | |||
| 材料 | 纯二氧化硅 | ||
| 纤芯直径(μm) | 7.0 ± 0.5 | ||
| 包层直径(μm) | 125 ± 2 | ||
| 涂覆层直径(μm) | 245 ± 5 | ||
| 涂覆层材料 | 丙烯酸树脂 | ||

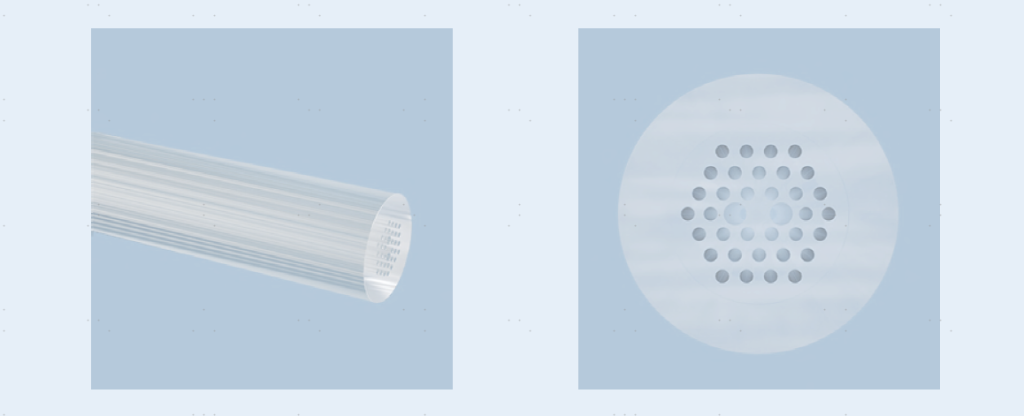

产品剖面图
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-AE系列，仅展示部分参数，如有需要，请您联系我们。
