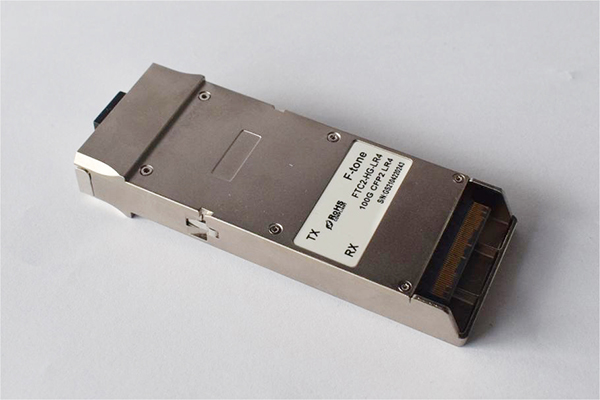

CFP2 Receiver,100G/OTU4, LR4,10km

Description
The F-tone Networks CFP2 100GEBASE-LR4 optical Receiver is a hot pluggable 100Gbps small-form-factor transceiver module .It is compliant with IEEE802.3ba and CFP MSA. The module is a multi-rate optical transceiver and intended to support Telecom and Datacom applications.

Features
● Operating optical data rate up to 112Gbps
● PIN ROSA only (without Transmitter )
● CFP2 MSA compliant
● Compliant to IEEE 802.3baspecification for 100GBASE-LR4
● Compliant to OTU4
● Transmission distance up to 10km
● Operating electrical serial data rate up to 27.952493Gbps
● 4 parallel electrical serial interface and AC coupling of CML signals
● MDIO real-time digital diagnostic(Optional) and control capabilities
● RX output CDR retiming
● Hot pluggable
● Total Power Consumption<3W
● 3.3V power supply
● Duplex LC receptacle optical interface
● RoHS 6 compliant(lead free)
● Compliant with CFP2 MSA hardware specification
● Compliant with CFP MSA management specification
● Case operating temperature
      Commercial: 0 ~ +70℃
      Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3ba 100GBASE-LR4
● OTN-OTU4
● Switch to switch interface or Switch to router interface

Absolute Maximum Ratings

Parameter	Symbol	Unit	Min	Max
Supply Voltage	VCC3	V	-0.5	3.6
Storage Temperature	Ts	°C	-40	85
Operating Case Temperature	Tc	°C	0	70
Relative Humidity (Non condensation)	–	%	5	95

Recommended Operating Conditions

Parameter	Symbol	Unit	Min	Typ	Max
Operating Case Temperature	Tc	°C	0	–	70
Supply Voltage	VCC	V	3.13	3.3	3.47
Supply Current	ICC	A	–	–	0.9
Power Dissipation	–	W	–	–	3

Optical Characteristics(Tested under recommended operating conditions, unless otherwise noted)

Parameter	Symbol	Unit	Value
			Min	Typ		Max
Optical Receiver Characteristics
Receiver Sensitivity in OMA for Each Lane(100GbE)	SOMA	dBm	–		–	-8.6
Receiver Sensitivity for Each Lane(OTU4)						-10.8
Los Assert		dBm				-12
Los De-assert		dBm	-19
Los Hysteresis		dBm			1

Electrical Characteristics(Tested under recommended operating conditions, unless otherwise noted)

Parameter	Symbol	Unit	Min	Typ	Max	Note
Receiver
Differential Data Output Swing	Vout,pp	mV	400	–	800
Differential Signal Output Resistance		Ω	80	–	120
Differential Signal Input Resistance		Ω	80	–	120
LOS Fault	–	V	Vdd3-0.5	–	Vdd3
LOS Normal	–	V	0	–	+ 0.5	1
Note1: Vdd3 is host +3.3V power supply.

Low Speed Electrical Interface

Parameter	Symbol	Unit	Min	Max	Note
Input High Voltage	VIH	V	2.0	Vcc3 + 0.3
	VIL	V	-0.3	0.8
Input Low Voltage	VOH	V	Vdd3-0.5	Vdd3 + 0.3	1
	VOL	V	0.0	0.4
Input Leakage Current	Vih	V	Vdd3*0.7	Vdd3 + 0.5	1
	Vil	V	-0.3	Vdd3*0.3
Output High Voltage (IOH = 100uA)	Voh	V	Vdd3-0.5	Vdd3 + 0.3
	Vol	V	0.0	0.4
Output low Voltage (IOH = 100uA)	IL	uA	-10	10
Minimum Pulse Width of Control Pin Signal		KHz		400
1.2V LVCMOS Electrical Characteristics
Input High Voltage	1.2VIH	V	0.84	1.5
Input Low Voltage	1.2VIL	V	-0.3	0.36
Input Leakage Current	1.2IIN	uA	-100	+ 100
Output High Voltage	1.2V0H	V	1.0	1.5
Output Low Voltage	1.2V0L	V	-0.3	0.2
Output High Current	1.2I0H	mA		-4
Output Low Current	1.2I0L	mA	+4
Input Capacitance	Ci	pF		10

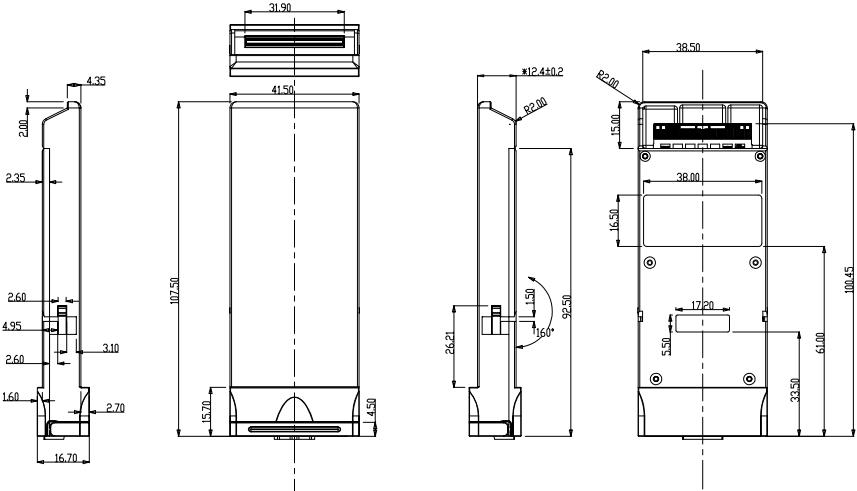

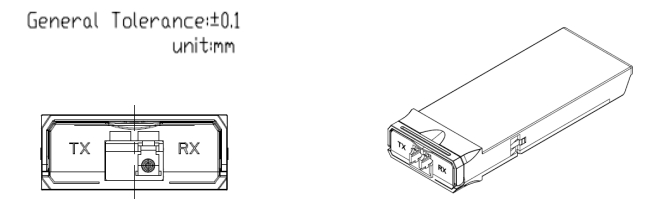

Mechanical Dimensions

Ordering Information

Part Number	Product Description
FTC2-HG-LR4R	CFP2, Receiver only(without TOSA), 100GE/OTU4,10km,100GBASE-LR4,0ºC ~ +70ºC
FTC2-HG-LR4RI	CFP2, Receiver only(without TOSA), 100GE/OTU4,10km,100GBASE-LR4,-40ºC ~ +85ºC

北亿纤通 | F-tone Networks

企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为CFP2光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
