产品特点
● 无移动组件
● 切换速度快
● 极其稳定的锁存模式
● 低功耗
● 极好的稳定性和可靠性
应用范围
● 无源光网络
● 光保护系统
● 测量系统
● 网络监控
技术参数
| 参数 | 单位 | FT-98-UMS-2×2 | 单位 | |
| 单向 | 双向 | |||
| Wavelength Range(波长范围) | nm | 1525 ~ 1565 | Other band optional | |
| Insertion Loss（插入损耗） | dB | 0.7(Typ.);1.1(Max) | 0.8(Typ.);1.2(Max) | |
| PDL（偏振相关损耗） | dB | 0.10(Typ.);0.20(Max) | 0.10(Typ.),0.30(Max) | |
| Return Loss（ 回波损耗） | dB | 45 | 30 | |
| Crosstalk（ 串扰） | dB | 40 | 30 | |
| Repeatability（重复性） | dB | +/- 0.01 | ||
| Durability（使用寿命） | Cycles | > 100 Billions | ||
| Switching Speed（切换速度） | s | Regular (50~200); Ultra-fast (5~20) | ||
| Maximum Optical Power（功率） | mW | 500 | ||
| Storage Temperature（存储温度） | °C | -40 ~ 85 | ||
| Operating Temperature（工作温度 ） | ℃ | -5 ~ 70 | ||
| Dimension( L ×W × H )（尺寸 ） | mm | 63 × 8 × 7 | ||
电控参数
| Parameter | Specification | Unit | |
| Regular | Ultra-fast | ||
| Switching Speed | 50~200 | 5~20 | μs |
| Switching Voltage(VCC) | 3( +/-5%) | 5.0~6.0 | V |
| Switching Current | < 200 | < 500 | mA |
| Pulse Width(typical) | 1000 | 20 | μs |
| Claim Frequency | < 800 | < 3000 | Hz |
驱动管脚定义
单向
| Switching State | Pin1 | Pin2 | The Optical Output Port |
| State “0” | 1(Voltage = VCC) | 0(Voltage = | IN1→OUT 1; IN2→OUT 2 |
| GND) | |||
| State “ 1” | 0(Voltage = GND) | 1(Voltage =VCC) | IN1→OUT 2; IN2→OUT 1 |
双向
| Switching State | Pin1 | Pin2 | The Optical Output Port |
| State “0” | 1(Voltage = VCC) | 0(Voltage =GND) | IN1↔OUT 1; IN2↔OUT 2 |
| State “ 1” | 0(Voltage = GND) | 1(Voltage =VCC) | IN1↔OUT 2; IN2↔OUT 1 |

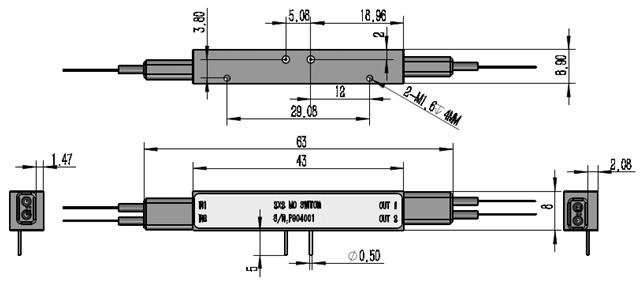

外形尺寸(mm)
订购信息 FT-98－UMS-2×2-A-B-C-D-E-F-G
| A | B | C | D | E | F |
| Working Mode | SwitchingSpeed | Operating Wavelength | Fiber Tuber | Fiber Length | Connector Type |
| 1.Regular2. Bidirectional | 1.50~200us 2.5~20us3. Others | 1.C Band1525~1565 nm2. L Band 1565-1615 nm3. C & L Band4. Others | 1.250μm fiber 2. 900μmfiber3. Others | 1.0.5 +/- 0.1 m2. 1.0 +/- 0.1 m3. Others | 0.No Connector1. FC/UPC2. FC/APC3. SC/UPC4. SC/APC5. LC/PC6. MU/PC7. Others |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-98系列，仅展示部分参数，如有需要，请联系我们。
