Product Features
● Uncooled laser diode with MQW structure
● Reach 100km Transmission Distance
● BIDI Single Mode Transceiver 1×9 Footprint
● SC, FC or ST Optical Interface are Optional
● 3.3V and 5V Power Supply compatible
● CML Differential Inputs and Outputs
● LVTTL Signal Detection Output
● Fast Ethernet and ITU G.957 Compliant
● Compliant RoHS and lead free
● Complies with Telcordia GR-468-CORE
● Operating case temperature:
Standard: 0 to +70°C
Extend: -20 to +85°C
Industrial: -40 to +85°C

Product Applications
● SONET/SDH
● Giga Ethernet
● Switches
● Routers
● Hubs Video

Performance Specifications
AbsoluteMaximum Ratings

Parameter	Symbol		Min	Max	Unit
Storage Temperature	Tst		-40	+85	°C
Operating Temperature	TO	BYTR-Bxx12-H0	0	+70	°C
		BYTR-Bxx12-H0E	-20	+85	°C
		BYTR-Bxx12-H0I	-40	+85	°C
Input Voltage	–		GND	VCC	V
Power Supply Voltage	VCC-VEE		0	+6	V

Recommended Operating Conditions

Parameter	Symbol		Min	Typ	Max	Unit
Storage Temperature	Tst		-40	–	+85	°C
Operating Case Temperature	TC	BYTR-Bxx12-H0	0	–	+70	°C
		BYTR-Bxx12-H0E	-20	–	+85	°C
		BYTR-Bxx12-H0I	-40	–	+85	°C
Power SupplyVoltage	VCC		3.14	–	*5.25*	V
DataRate	DR		–	1250		Mbps

Optical Specification

Transmitter
Parameter		Symbol	Min	Typ	Max	Unit	Note
Center Wavelength	1490 DFB	λC	1480	1490	1500	nm	BYTR-B4512-H0xx
Center Wavelength	1550 DFB	λC	1530	1550	1580	nm	BYTR-B5412-H0xx
Spectral Width		∆λ	–	–	1	nm	DFB
Average Optical Output Power		Po	-2	–	3	dBm	–
Extinction Ratio		Er	9	–	–	dB	–
Optical Rise Time(20%-80%)		Tr	–	–	260	ps	–
Optical Fall Time(20%-80%)		Tf	–	–	260	ps	–
Output Eye Diagram		Compliant with ITU-T.G957
Receiver
Parameter		Symbol	Min	Typ	Max	Unit	Note
Operate Wavelength		131O	1261	–	1370	nm	BYTR-B1312-H0xx
Operate Wavelength		1550	1500		1600	nm	BYTR-B1512-H0xx
Sensitivity		Pr	–	–	-30	dBm	1
Saturation		Ps	-6	–	–	dBm	1
Signal Detect Assert Level		–	-45	–	–	dBm	Alarm: Low-level
Signal Detect De-assert Level		–	–	–	-30	dBm	Alarm: Low-level
SD Hysteresis		–	0.5	–	5	dB	–

Note: 1. Minimum Sensitivity and saturation levels for a 27-1 PRBS test pattern @1250Mbps.

Package Diagram

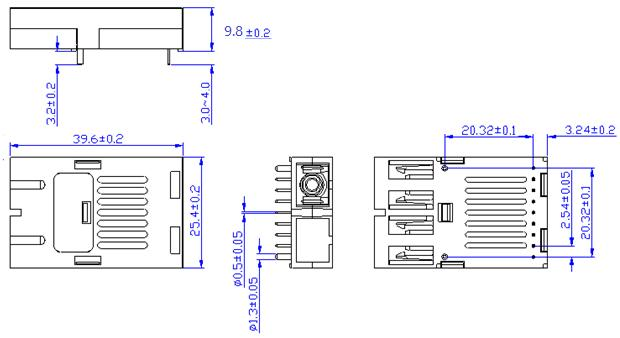

SC Interface

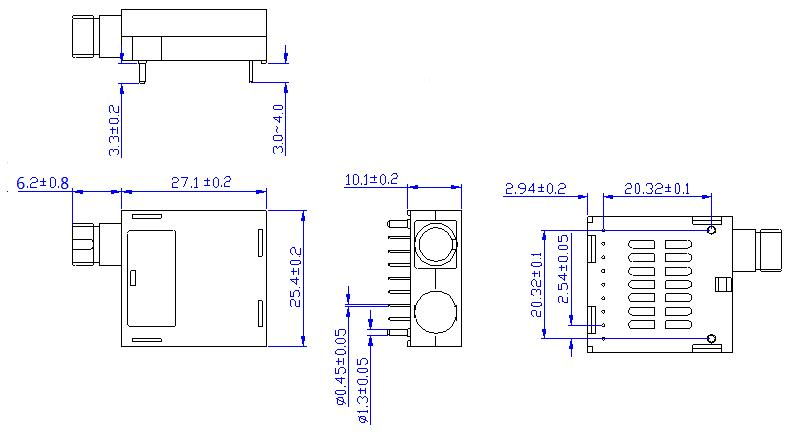

FC Interface

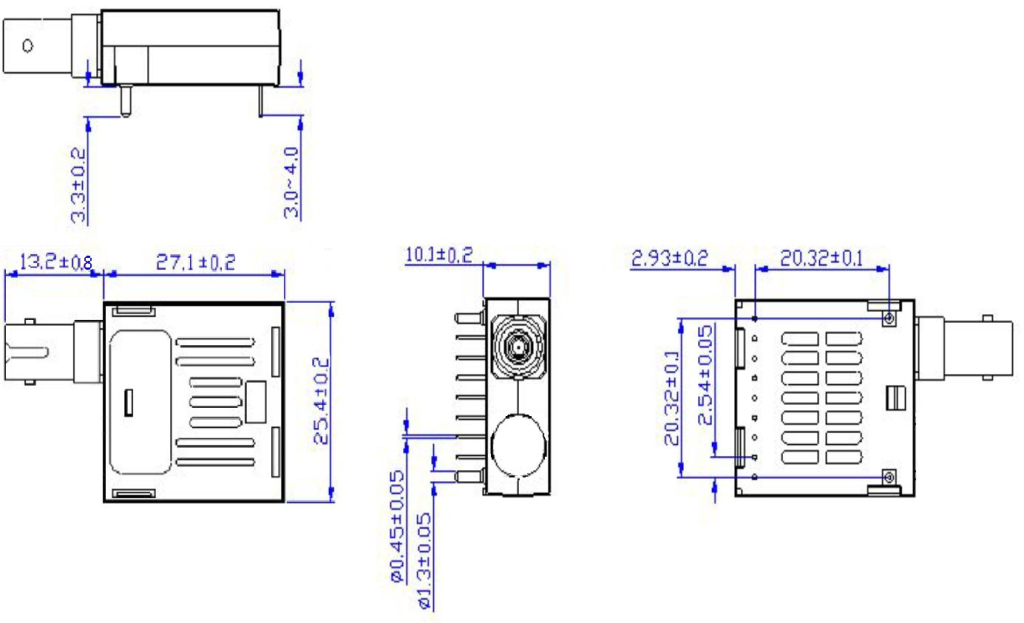

ST Interface

Order information

产品型号	封装	波长(-xx)	速率(xx)	传输距离 (-xx)	x	等级(x)
BYTR-Bxx12-H0xx	1×9	B13=T1310/R1550 B15=T1550/R1310 B45=T1490/R1550 B54=T1550/R1490	12=1.25G	H0=100km	空不带DDM D 带DDM	空商业级 E 扩展级 I 工业级
