Feature
● Excellent optical performance
● High-speed operation
● High-reliability mechanism
● All solid-state construction in a compact package
Application
● Optical signal switching independent from data rate and data protocol
● Network protection, restoration and performance monitoring
● Instrumentation
● Variable digital group delay
● Medical, aerospace, and other manufacturing and industrial industries
Specifications
| Attributes1,2 | Performance |
| Wavelength Range3 | 2000nm, or 1550nm, or 1310nm, or 1064nm, or 850nm, or 780nm |
| Insertion Loss | ≤ 1.2 dB |
| Polarization Dependent Loss | < 0.1dB |
| Response Time | < 60 ns |
| Input Power Range | < 500 mW |
| Return Loss | ≥ 45 dB |
| Operating Temperature Range | 0 to 70°C |
| Storage Temperature | -40~+85 |
| Dimensions (Approximate) | 65×8×7.5 mm |
Notes:
- Unless otherwise specified, all measurements are at 25°C.
- Meets or exceeds Telcordia GR1221 and GR1209 specifications.
- Also available in visible and mid-infrared wavelength.

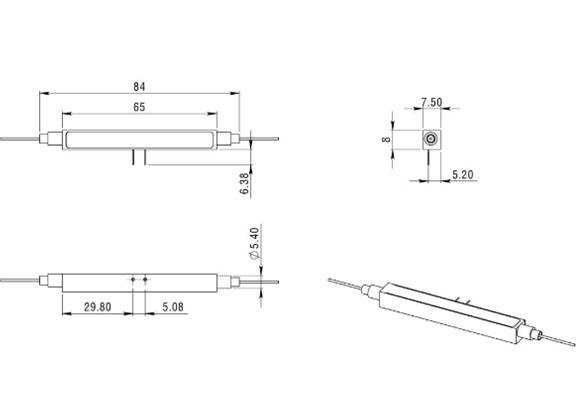

Dimension(mm)
Ordering Information: FT-98-FOS -1×2-A-B-C-D-E-F
| A | B | C | D | E | F |
| Test Wavelength | Voltage | Fiber Type | Fiber Dimension | Fiber Length | Connector |
| 850: 850nm | 20:180~210V | SM: Single Mode | 025: Φ0.25mm | 05: 0.5m | 00: None |
| 1310: 1310nm | M1:Multi-mode 50/ 125 | 09: Φ0.9mm | 10: 1.0m | FP: FC/UPC | |
| 1550: 1550nm | M2:Multi-mode 62.5/ 125 | X: other | 15: 1.5m | FA: FC/APC | |
| D: 1310/ 1550nm | X: other | X: other | SP: SC/UPC | ||
| X: other | SA: SC/APC | ||||
| LP: LC/UPC | |||||
| LA: LC/APC | |||||
| X: other |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-98系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
